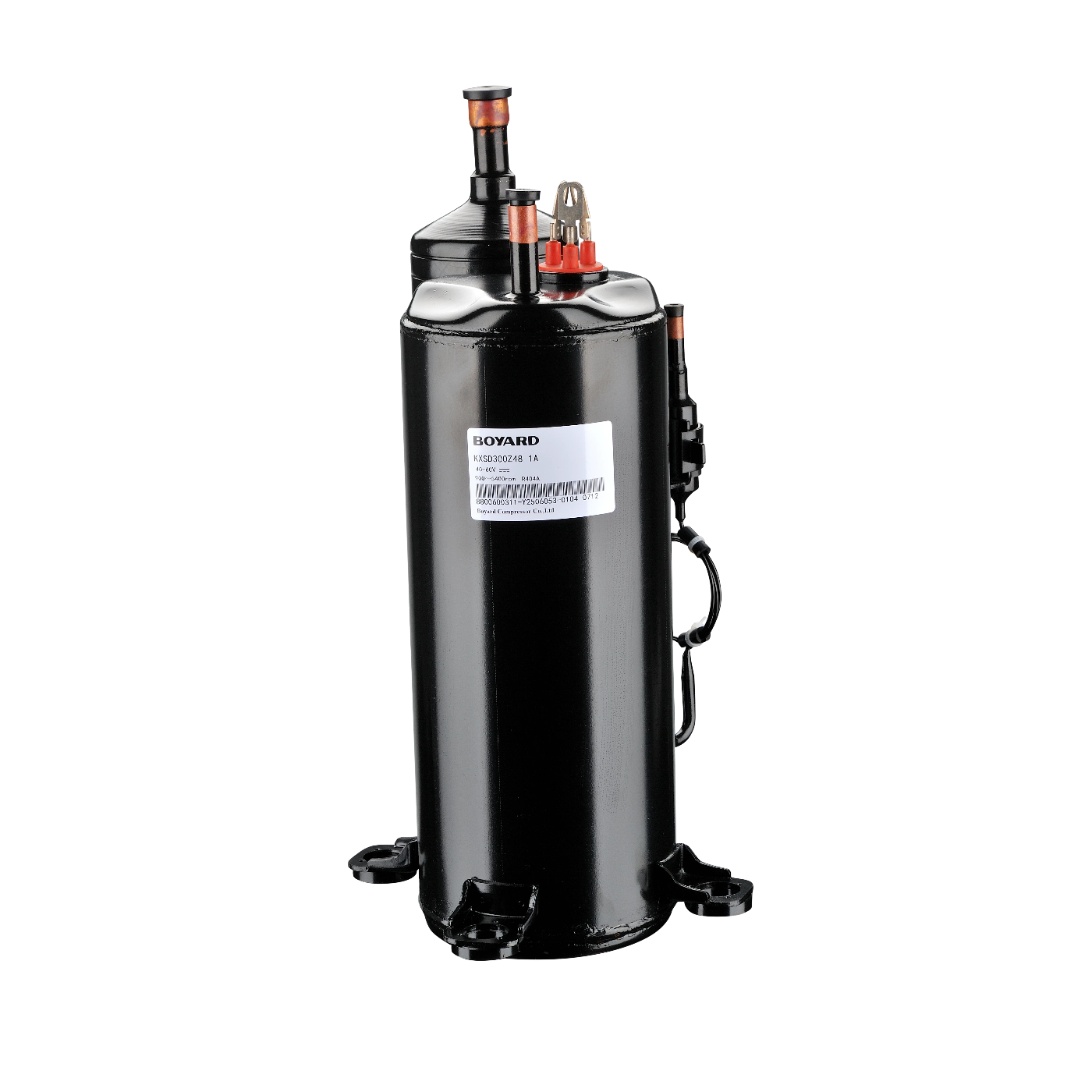

MBP/LBP, 30.0cc, 48V DC, R448A/R404A/A2L, Variable Speed, Refrigeration Compressor

Category: Refrigeration Compressors, Compressors, DC Variable-Speed Compressors

KXSD300Z48 DC 48V
Displacement(cc/rev)	Capacity (W)	Capacity (Btu/h)	Input Power (W)	Current (A)	COP (W/W)	Rated Speed (rpm)	Speed Range (rpm)	Height	Test Conditions	Form	Cylinder Number
30.0	3900	13307	2300	48.0	1.70	3600	900～5400	340	MBP	V	2
30.0	2250	7677	1875	39.0	1.20	3600	900～5400	340	LBP	V	2

MBP/LBP, 30.0cc, 48V DC, R448A/R404A/A2L, Variable Speed, Twin Cylinder Compressor for commerical showcase, DC 48V vertical structure with starting capacitor and capillary liquid injection
Rotary compressor, which are different from the reciprocating compressor and scroll compressor.10% energy saving
Used in low & medium temperature refrigeration equipment
Compatible with R448A/R449A/R404A/A2L refrigerant
Wide evaporating temperature, from -5°C to -40°C
Adopt liquid injection cooling technology to assure the compressors run stably underpoor working
Vertical and horizontal type available. The horizontal form is more compact in size

Share:

Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cylinder series provides better performance.

Parameter

TEST CONDITIONS：

Test Condition	Evaporating Temp.	Condensing Temp.	Suction Temp.	Liquid Temp.
HBP	7.2℃	54.5℃	18.3℃	46.1℃
MBP	-6.7℃	54.5℃	18.3℃	32.2℃
LBP	-23.3℃	54.5℃	18.3℃	32.2℃

R448A/R404A/A2L 48V DC Variable-Speed Commercial Refrigeration Compressors Technical Data
Model	Displacement(cc/rev)	Capacity (W)	Capacity (Btu/h)	Input Power (W)	Current (A)	COP (W/W)	Rated Speed (rpm)	Speed Range (rpm)	Height	Test Conditions	Form	Cylinder Number
JHSD116Z48	11.6	1535	5237	930	19.5	1.65	3600	1800～4500	150	MBP	V	2
JHSD116Z48	11.6	880	3003	770	16.0	1.14	3600	1800～4500	150	LBP	V	2
KXSD300Z48	30.0	3900	13307	2300	48.0	1.70	3600	900～5400	340	MBP	V	2
KXSD300Z48	30.0	2250	7677	1875	39.0	1.20	3600	900～5400	340	LBP	V	2
KHSD300Z48	30.0	3900	133007	2300	48.0	1.70	3600	900～5400	166	MBP	H	2
KHSD300Z48	30.0	2250	7677	1875	39.0	1.20	3600	900～5400	166	LBP	H	2
R32/R454B/R410A 48V DC Variable-Speed Compressors Technical Data
Model	Displacement(cc/rev)	Capacity (W)	Capacity (Btu/h)	Input Power (W)	Current (A)	COP (W/W)	Rated Speed (rpm)	Speed Range (rpm)	Height	Test Conditions	Form	Cylinder Number
JHSN116Z48	11.6	2250	7677	1185	25.0	1.90	3600	1800～4800	150	MBP	V	2
JHSN116Z48	11.6	1035	3531	1078	23.0	0.96	3600	1800～4800	150	LBP	V	2
JHSD116Z144	11.6	1600	5459	889	6.2	1.80	3600	1800～4500	150	MBP	H	2
JHSD116Z144	11.6	915	3122	740	5.2	1.25	3600	1800～4500	150	LBP	H	2
R448A/R404A/A2L 144V DC Variable-Speed Compressors Technical Data
Model	Displacement(cc/rev)	Capacity (W)	Capacity (Btu/h)	Input Power (W)	Current (A)	COP (W/W)	Rated Speed (rpm)	Speed Range (rpm)	Height	Test Conditions	Form	Cylinder Number
JHSD150Z144	15.0	2070	7063	1150	8.0	1.80	3600	1800～4500	150	MBP	H	2
JHSD150Z144	15.0	1180	4026	945	6.0	1.25	3600	1800～4500	150	LBP	H	2

Application

Commercial Refrigeration

Boyard refrigeration rotary compressors are the ideal choice for various refrigeration equipment such as display case cabinets and condensing units.

Transport Refrigeration

Boyard horizontal compressors excel in transport refrigeration, providing reliable cooling solutions for vehicles like vans, trailers, and food trucks.

Transport HVAC

Boyard compressors offer unparalleled performance and reliability, providing efficient heating and cooling for vehicles such as buses, trucks, and RVs.

Air Conditioning & Heat Pump

Boyard compressors are a leading choice for air conditioning and heat pump applications due to their high COP, reliability, and quiet operation.

Specialty Cooling

Boyard compressors are highly regarded in specialty cooling applications, offering tailored solutions for medical equipment, laboratory refrigeration, laser-cooling, industrial cooling systems.

Cooling For Better Life

Professional manufacturer of rotary compressor for more than 20 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual Cylinder series provides better performance Customization service to fulfill the market needs

Boyard Compressor Certifications UL, CE, Rohs Environmental Proof

IATF16949

ISO14001

ISO9001

Boyard Compressor Certifications UL, CE, Rohs

CE

UL

ROHS

FAQ

Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.

Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.

DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.

When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.

We have one year warranty for manufacturers.

We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
