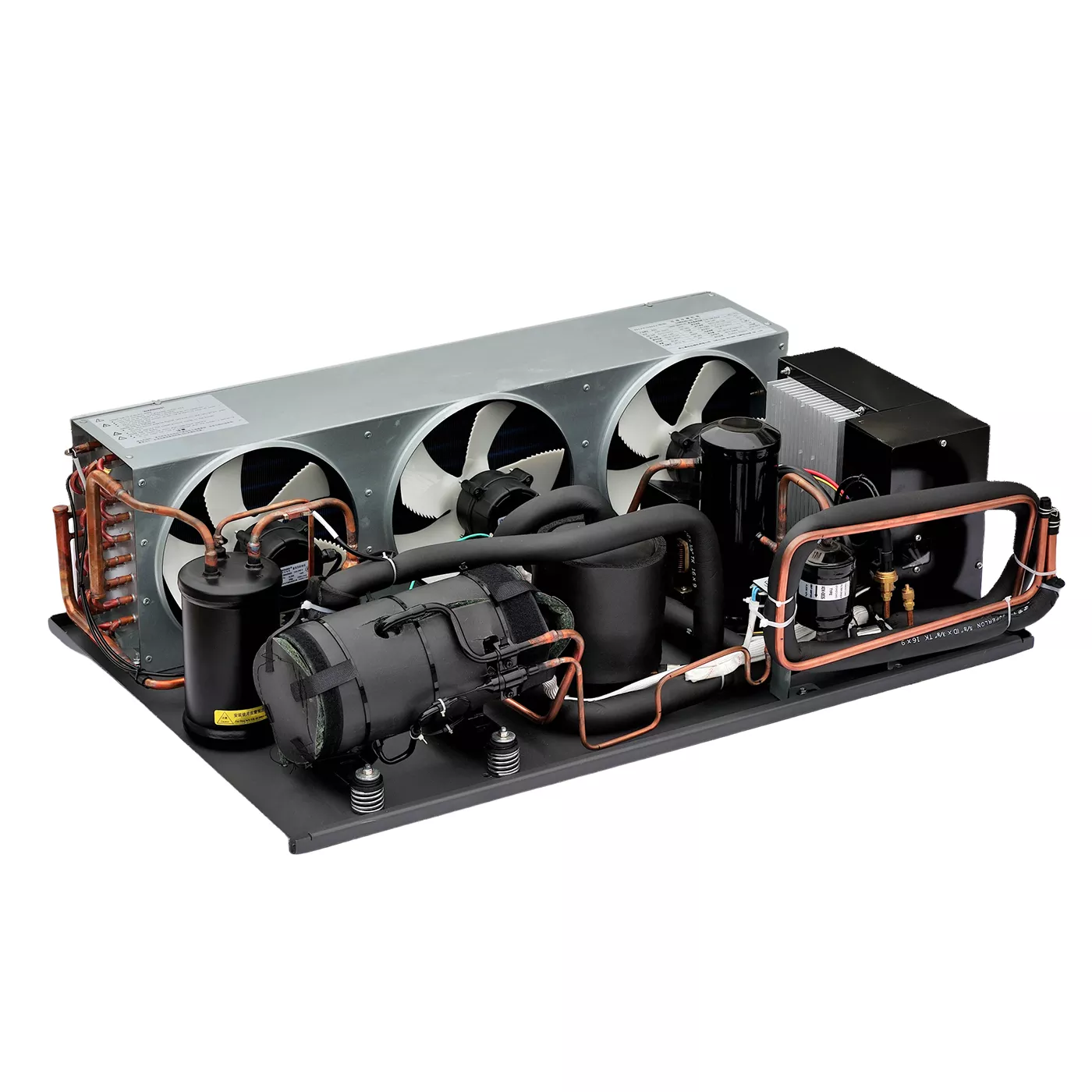

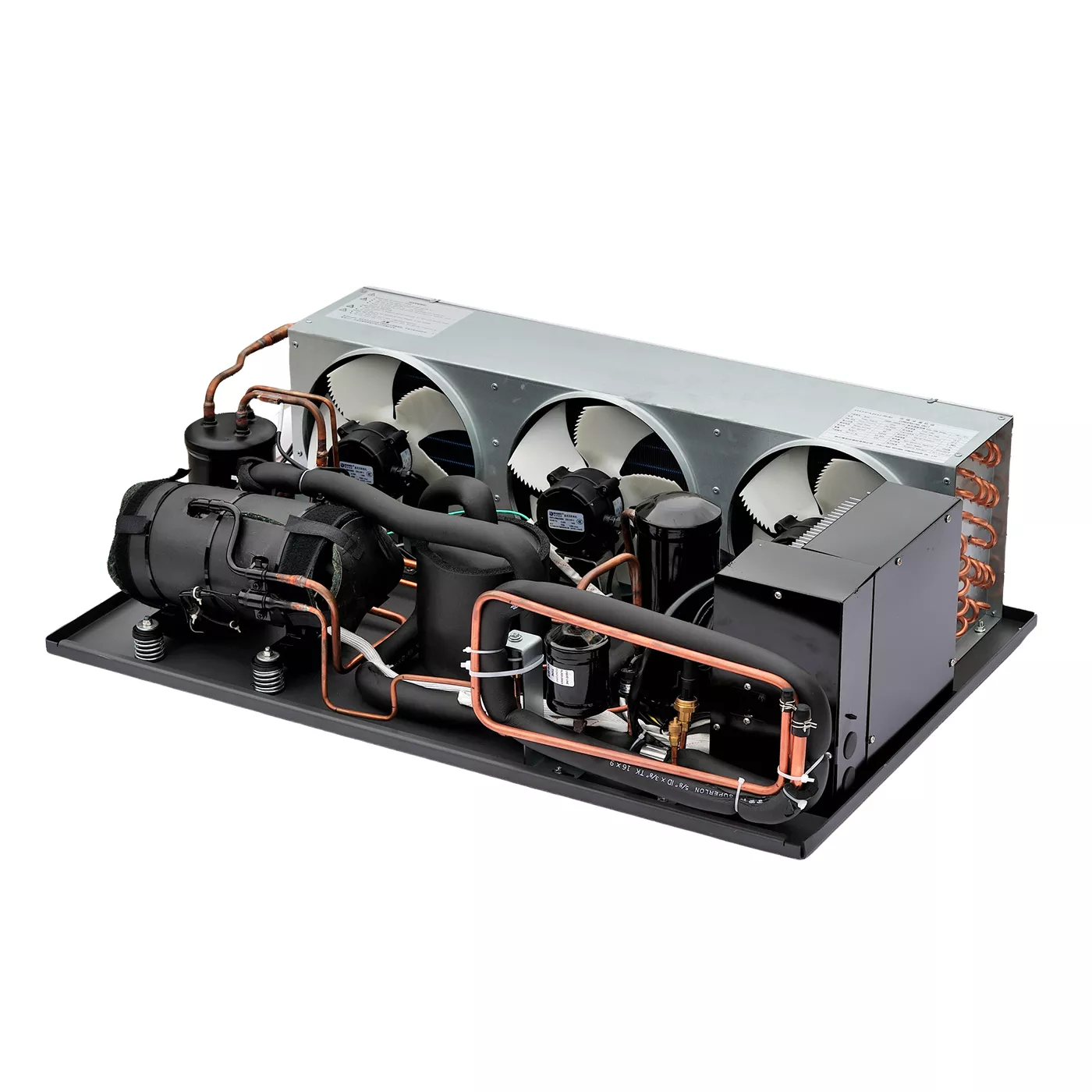

| Horizontal Frequency Conversion Unit Technical Data | |||||
| Model | HQSD-210KBI40 | HQSD-285KBI40 | HQSD-360KBI40 | ||
| Nominal Input（W） | 1200 | 1550 | 1950 | ||
| Power Supply | 220V 50/60 Hz | ||||
| Refrigerant | R404A or Equivalent | ||||
| Refrigerant Max.（Kg） | 1.8 | 2.5 | 3.5 | ||
| Max Running Current (A) | 6 | 10.5 | 13.5 | ||
| Evap.Temp(℃) | -40～-5℃ | ||||
| Ambient Temp(℃) | 10～43℃ | ||||
| Compressor（Model） | JHSD150Z312 | KHSD203Z312 | KHSD300Z312 | ||
| Condenser | Style | Copper tube fin condenser or microchannel condenser | |||
| Fan Motor | （mm）Diameter Quantity | φ230*2 (EC fan) | φ230*3 (EC fan) | φ230*3 (EC fan) | |
| (m3/hr) Air Flow | 730*2 | 730*3 | 730*3 | ||
| (mm) Pipe | Gas Inlet Diam OD | φ12.7(1/2″) | |||
| Liquid Outlet OD | φ9.53(3/8″) | ||||
| (mm) Out Dimension | (mm)Length | 790 | 940 | 1145 | |
| (mm) Width | 600 | 620 | 600 | ||
| (mm) Height | 251 | ||||
| (Kg）Weight | 33.5 | 47 | 53 | ||
| （W） Capacity | (℃) Evap Temp | Ambient Temp:32℃ Sub-cooling 0℃ | |||
| -40 | 590 | 840 | 990 | ||
| -35 | 720 | 1040 | 1260 | ||
| -30 | 910 | 1250 | 1480 | ||
| -25 | 1150 | 1500 | 1750 | ||
| -20 | 1410 | 1890 | 2250 | ||
| -15 | 1700 | 2240 | 2750 | ||
| -10 | 2000 | 2650 | 3300 | ||
| -5 | 2320 | 2950 | 3930 | ||
| Wiring Capacity | Leak Protector | (A) Rated Current | 15 | 20 | 20 |
| (mA) Leak Current | 30 | 30 | 30 | ||
| (mm2) Diameter | L≤10m | 2.0 | 4.0 | 4.0 | |
| 10＜L≤20m | 2.5 | 6.0 | 6.0 | ||
| 20＜L≤30m | 2.5 | 6.0 | 6.0 | ||
| ①Refrigerating capacity test condition；②The biggest running current test condition。 | |||||
| (GB/T 21363-2008)TEST CONDITION: | |||||
| TEST CATION | AMBIENT TEMP. | RETURN GAS TEMP. | EVAP. TEMP. | ||
| ① | STANDARD TEST CONDITIONS | 32℃ | 18℃ | -7℃ | |
| ② | OVERLOAD RUNNING | 43℃ | 18℃ | 0℃ | |
