Indoor Unit
1.5 HP, R448A/R404A/A2L, 220V AC indoor condensing unit - Image 2

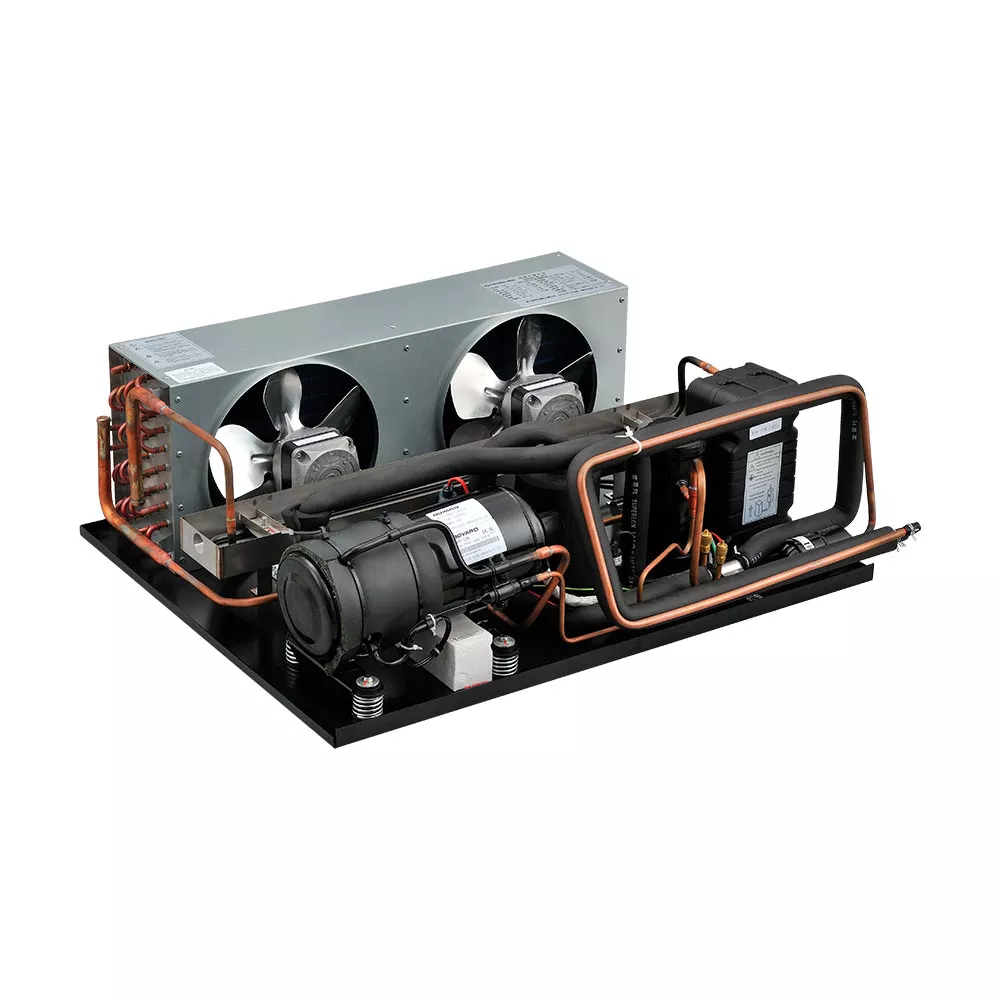

1.5 HP, R448A/R404A/A2L, 220V AC indoor condensing unit

Category: Systems, Indoor Condensing Units, Plugin Refrigeration System for Display cases
  • Indoor Unit Condensing Unit R404A for Supermarket Showcase Air-curtain Display Chest Freezer Under Counter Island Cabinet
  • Adopts high efficiency rotary compressor and EBM motor. 20% energy saving.
  • Evaporate temperature ranges from -5°C to -40°C, suitable for middle and low temp. refrigeration unit.
  • Compact in size with horizontal compressor.
  • Special liquid injection cooling tube design of the compressor ensures continuously working of the condensing unit under high ambient temperature.
  • Simple unit without condenser.
  • Customized features…
Contact

Share:

Previous
1.5 HP, R448A/R404A/A2L, 220V AC indoor condensing unit
Next
2.5 HP, R448A/R404A/A2L, 220V AC,indoor condensing unit
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

ModelHQHD-13KBPHQHD-16KBPHQHD-23KBPHQHD-30KBPHQHD-36KBP
Nominal Input（W）720920135017001915
Power Supply1PH 220～240V 50Hz
RefrigerantR404A
Refrigerant Max.（Kg）1.21.52.03.03.0
Start-Up Current (A)2027384250
Max Running Current (A)4.56.08.210.011.0
Evap.Temp(℃)-40～-5℃
Ambient Temp(℃)0～43℃
（The environmental temperature under 10℃, Increase the condensation temperature control）
Compressor（Model）QHD-13KQHD-16KQHD-23KQHD-30KQHD-36K
CondenserStyle4排4.5环4排4.5环5排4.5环5排4.5环5排4.5环
Fam Motor（mm）
Diameter Quantity		φ230*2
(10W*2)		φ230*2
(16W*2)		φ230*2
(16W*2)		φ230*3
(16W*3)		φ230*3
(16W*3)
(m3/hr)
Air Flow		680*2820*2820*2820*3820*3
(mm)
Pipe		Gas Inlet Diamφ12.7（1/2″）
Liquid Outletφ9.53（3/8″）
(mm)
Out Dimension		(mm) Length6806807909401145
(mm) Width485520
(mm) Height263
（Kg）Weight293137.54750.6
（W）
Capacity		(℃) Evap TempAmbient Temp:32℃
-40390515660860970
-3553567085510651240
-3065577596012951500
-25755985121017051885
-209201170146519252200
-1511051495174022852690
-1013851675220027103225
-516501910253530303850
Wiring
Capacity		Leak Protector(A)
Rated Current		1015202020
(mA)
Leak Current		3030303030
(mm2)
Diameter		L≤10m2.52.52.54.04.0
10＜L≤20m2.52.52.56.06.0
20＜L≤30m2.52.52.56.06.0
①Refrigerating capacity test condition；②The biggest running current test condition。
(GB/T 21363-2008) TEST CONDITION:
TEST CATIONAMBIENT TEMP.             RETURN GAS TEMP.              EVAP. TEMP.              TESTING POWER SUPPLY
①Standard test conditions32.2℃5℃ -23℃220V～50HZ
②OVERLOAD  RUNNING43℃18℃ -7℃220V～50HZ
