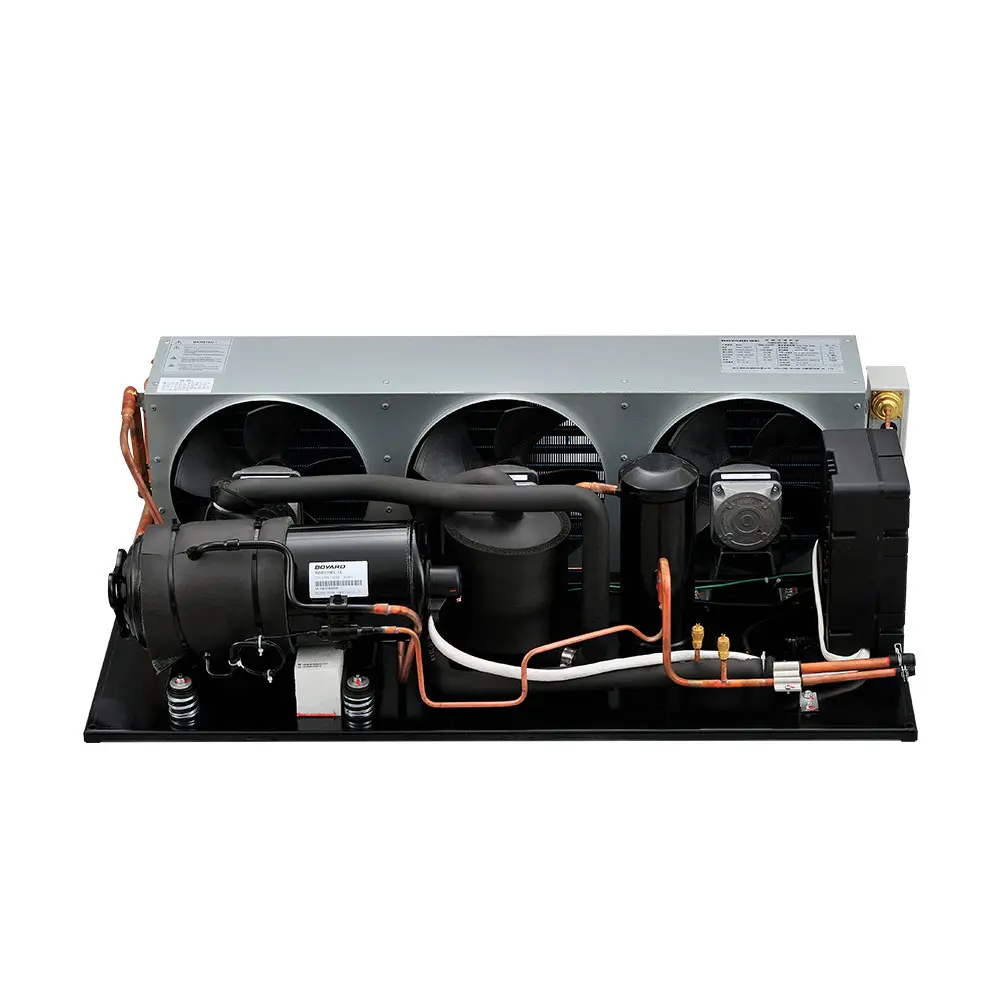

1.0 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Unit
1.0 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Unit - Image 2

1.0 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Unit

Category: Systems, Indoor Condensing Units
  • 220V AC Indoor Condensing Unit ultra low temperature freezer refrigeration condensing units, Adopts high efficiency rotary compressor and EBM motor. 20% energy saving.
  • Evaporate temperature ranges from -5°C to -40°C, suitable for middle and low temp. refrigeration unit.
  • Compact in size with horizontal compressor.
  • Special liquid injection cooling tube design of the compressor ensures continuously working of the condensing unit under high ambient temperature.
  • Optimized condenser can reduce refrigerant  charging
  • The water from freezer can be boiled off in the pan which heating from compressor
  • Installing easily, can be running directly after power on
Contact

Share:

Previous
3.0 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Unit
Next
2.5 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Unit
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

Technical Data of HQHD Series Condening Uint（Condenser big）
 ModelHQHD-16KBI24HQHD-23KBI22HQHD-30KBI22HQHD-36KBI22HQHD-456KBI22
① Nominal Input（W）9001320168019002300
 Power Supply1PH 220～240V 50Hz
 RefrigerantR404A
 Refrigerant Max.（Kg）1.52.03.03.03.5
Start-Up Current (A)2738425065
② Max Running Current (A)6.08.210.011.013.5
Evap.Temp(℃)-40～-5℃
Ambient Temp(℃)10～43℃

（The environmental temperature under 10℃, Increase the condensation temperature control）

 Compressor（Model）QHD-16KQHD-23KQHD-30KQHD-36KTHSD456KS 1A
Condenser Style4排5.5环4排5.5环4排5.5环5排5.5环5排5.5环
Fam Motor（mm）
Diameter Quantity		φ254*2
(16W*2)		φ254*2
(16W*2)		φ254*3
(16W*3)		φ254*3
(16W*3)		φ254*3
(16W*4)
(m3/hr)
Air Flow		840*2840*2840*3840*3840*4
(mm)
Pipe		 Gas Inlet Diamφ12.7(1/2″)
 Liquid Outletφ9.53(3/8″)
(mm)
Out Dimension		(mm) Length680830135013501350
(mm) Width520520540540540
(mm) Height285
（Kg）Weight37.540.658.560.366.3
（W）
Capacity		(℃) Evap Temp Ambient Temp:32℃
-405156609309701100
-35670855116512401415
-30775960139515711790
-259851210170519802260
-2011701463192523602695
-1515401790235027703180
-1017252265279033204055
-519652610312039654870
Wiring
Capacity		Leak Protector(A)
Rated Current		1520202025
(mA)
Leak Current		3030303030
(mm2)
Diameter		L≤10m2.52.54.04.04.0
10＜L≤20m2.52.56.06.06.0
20＜L≤30m2.52.56.06.06.0

Application
