indoor condensing unit
1 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Units - Image 2

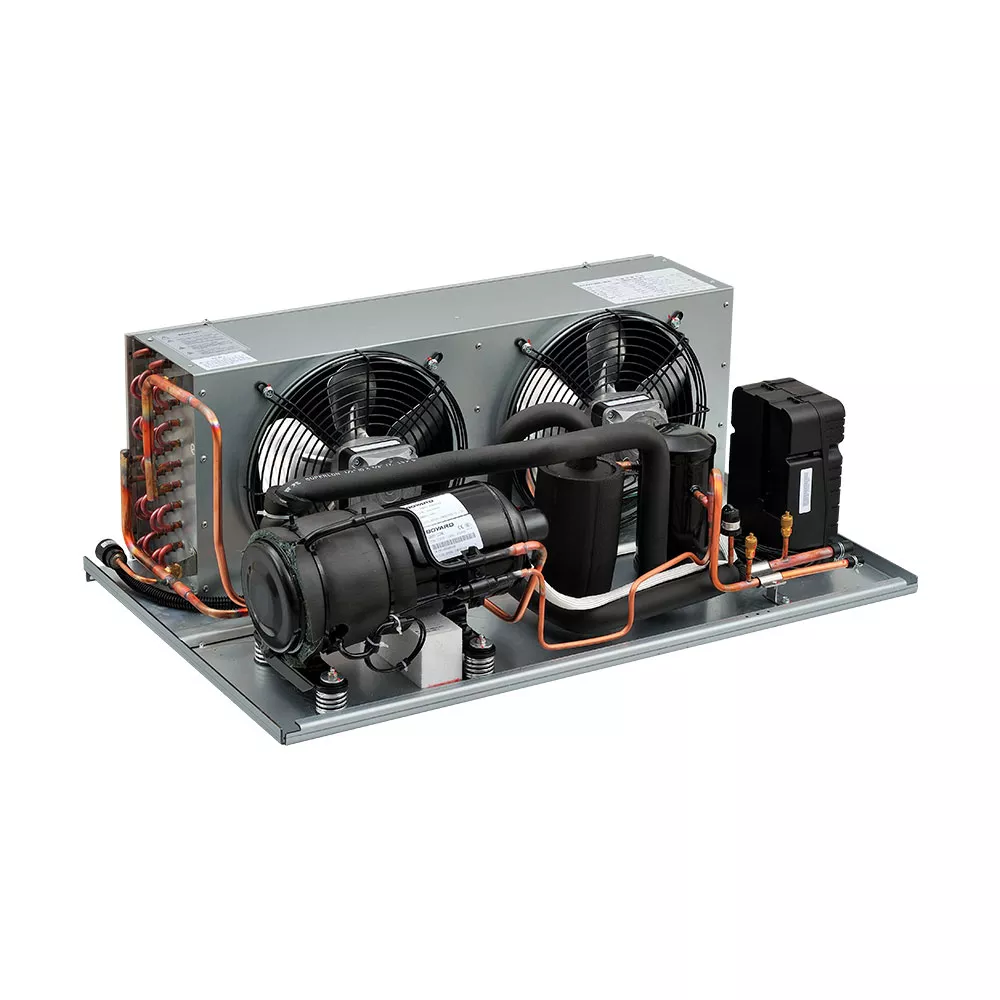

1 HP, R448A/R404A/A2L, 220V AC Indoor Condensing Units

Category: Systems
  • Indoor Condensing Unit R404A 60HZ with Horizontal Compressor for Commercial Supermarket Island Cabinet Refrigeration Unit
  • Adopts high efficiency rotary compressor and EBM motor. 20% energy saving.
  • Evaporate temperature ranges from -5°C to -40°C, suitable for middle and low temp. refrigeration unit.
  • Compact in size with horizontal compressor.
  • Special liquid injection cooling tube design of the compressor ensures continuously working of the condensing unit under high ambient temperature.
  • Simple unit without condenser.
  • Customized features…
Contact

Share:

Previous
MBP/LBP,20.3cc ,115V AC,R448A/R404A/A2L,Twin Cylinder Compressor
Next
1HP, R448A/R404A/A2L, 220V AC Indoor Condensing Units
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

ModelHQHD-135YBI01HQHD-164YBI01HQHD-236YBI01HQHD-307YBI01HQHD-357YBI
Nominal Input（W）9001050139018502150
Power Supply1PH 220V 60Hz
RefrigerantR404A
Refrigerant Max.（Kg）1.22.02.02.53.0
Start-Up Current (A)2630405260
Max Running Current (A)5.16.9911.212.3
Evap.Temp(℃)-40～-5
Ambient Temp(℃)0～43℃
（The environmental temperature under 10℃, Increase the condensation temperature control）
Compressor（Model）KHD135YSKHD164YSSHD236YSTHD307YSTHD357YS
CondebserStyle4排4.5环5排4.5环5排4.5环5排4.5环5排5环
Fam Motor（mm）Diameter Quantityφ230*2（16W*2）φ230*2（16W*2）φ230*3（16W*2）φ230*3（16W*3）φ230*3（16W*4）
(m3/hr)
Air Flow		820*2820*2820*3820*3820*3
(mm)
Pipe		Gas Inlet Diamφ12.7(1/2″)
Liquid Outletφ9.53(3/8″)
(mm)
Out Dimension		(mm) Length68079094011451180
(mm) Width520520520520520
(mm) Height263275
（W）
Capacity		(℃) Evap TempAmbient Temp:32℃
-4045059075510701115
-3558077098013401425
-30720890110016051805
-258701130139019602280
-2010601345168022152715
-1512751600200026253115
-1015951925254531203765
-518952200297534804450
Wiring
Capacity		Leak Protector(A)
Rated Current		1015202020
(mA)
Leak Current		3030303030
(mm2)
Diameter		L≤10m2.52.54.04.04.0
10＜L≤20m2.52.56.06.06.0
20＜L≤30m2.52.56.06.06.0
①refrigerating capacity test condition；②The biggest running current test condition。
(GB/T 21363-2008)TEST CONDITION:
  TEST CATIONAMBIENT TEMP.               RETURN GAS TEMP.                EVAP. TEMP.TESTING POWER SUPPLY
①Standard test conditions32.2℃5℃ -23℃220V～60HZ
②      OVERLOAD  RUNNING43℃18℃ -7℃220V～60HZ



Application

Cooling For Better Life

Professional manufacturer of rotary compressor for more than 15 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual cynlinder series provides better performance Customization service to fulfill the market needs

FAQ

Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.

Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.

DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.

When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.

We have one year warranty for manufacturers.

We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
