cold room condensing unit
Outdoor Condensing Unit

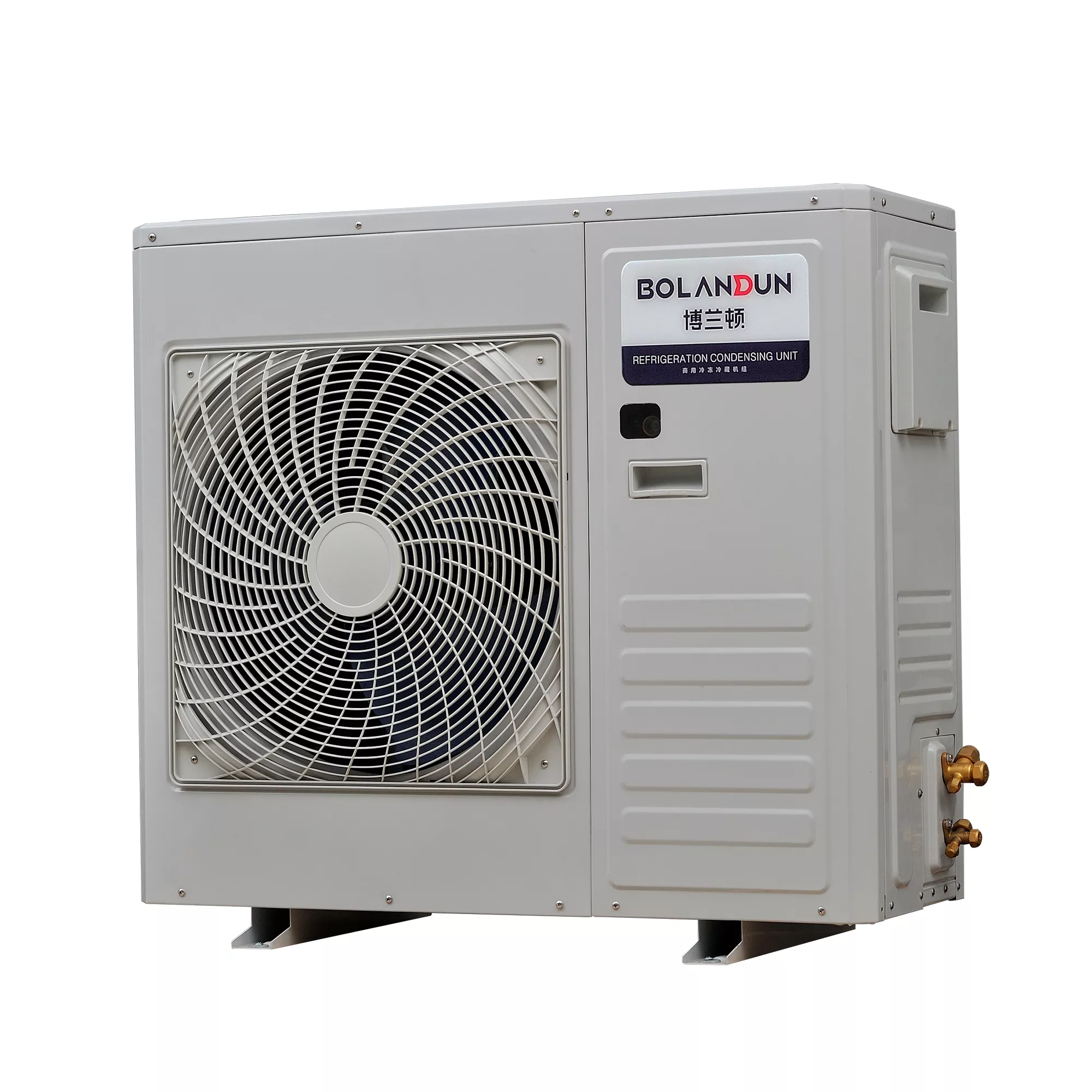

1 HP, R448A/R404A/A2L, 220V AC Outdoor Remote Condensing Units

Category: Systems, Outdoor Remote Condensing Units
  • R404A Outdoor Cold Room Condensing Unit 4000W Refrigeration Capacity with Boyard Brand Vertical Compressor 220V 50HZ
  • High efficiency/High reliability/Compact size.
  • Large capacity condenser.
  • Special refrigeration control system to reduce energy consumption.
  • Easy installation with stop valve.
Contact

Share:

Previous
HBP/MBP,13.8cc ,220V AC,R410A,Twin Cylinder Compressor
Next
4 HP, R448A/R404A/A2L, 380V AC Outdoor Remote Condensing Units
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

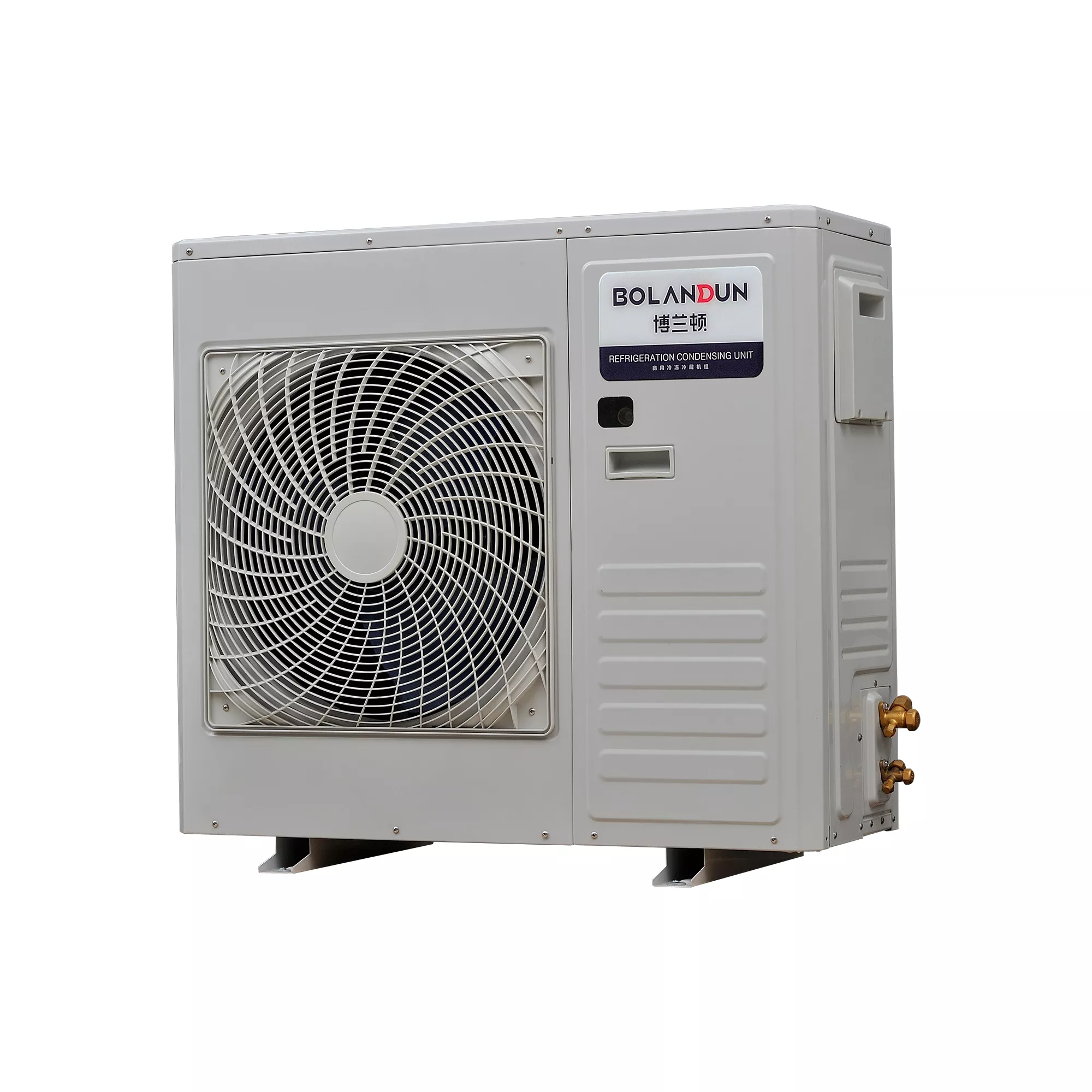

Model No.BYGF-010-QXM-SEDPBYGF-020-QXM-SEDP
Horse Power1P2P
Power Supplier1PH 220V 50Hz
RefrigerantR404A
Refrigerant Max.(KG)1.53.0
Start-Up Current(A)2238
Max Running Current(A)611
Evap.Temp -20～10℃
Ambient.Temp -10～46℃
CompressorQXD-16KQXD-30K
High Pressure Control2.8OFF   2.2 ON
Low Pressure Control0.015 OFF 0.15 ON
CondenserFan MotorSpecification1*102*16
Diameter*Quantityφ400*1φ480*1
Air Flow(m3/hr)22003400
PipeGas Inlet Diam.φ12.7（1/2″）φ15.88（5/8″）
Gas Outlet Diam.φ6.35（1/4″）φ9.52（3/8″）
Out Dimension(mm)Length960
(mm)Width420
(mm)Height850
(mm)Installation Dimension580*385
(W)CapacityEvap. Temp.Ambient Temp.32℃
-2013002530
-1516603090
-1018603710
-521204425

Application

Cooling For Better Life

Professional manufacturer of rotary compressor for more than 15 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual cynlinder series provides better performance Customization service to fulfill the market needs
