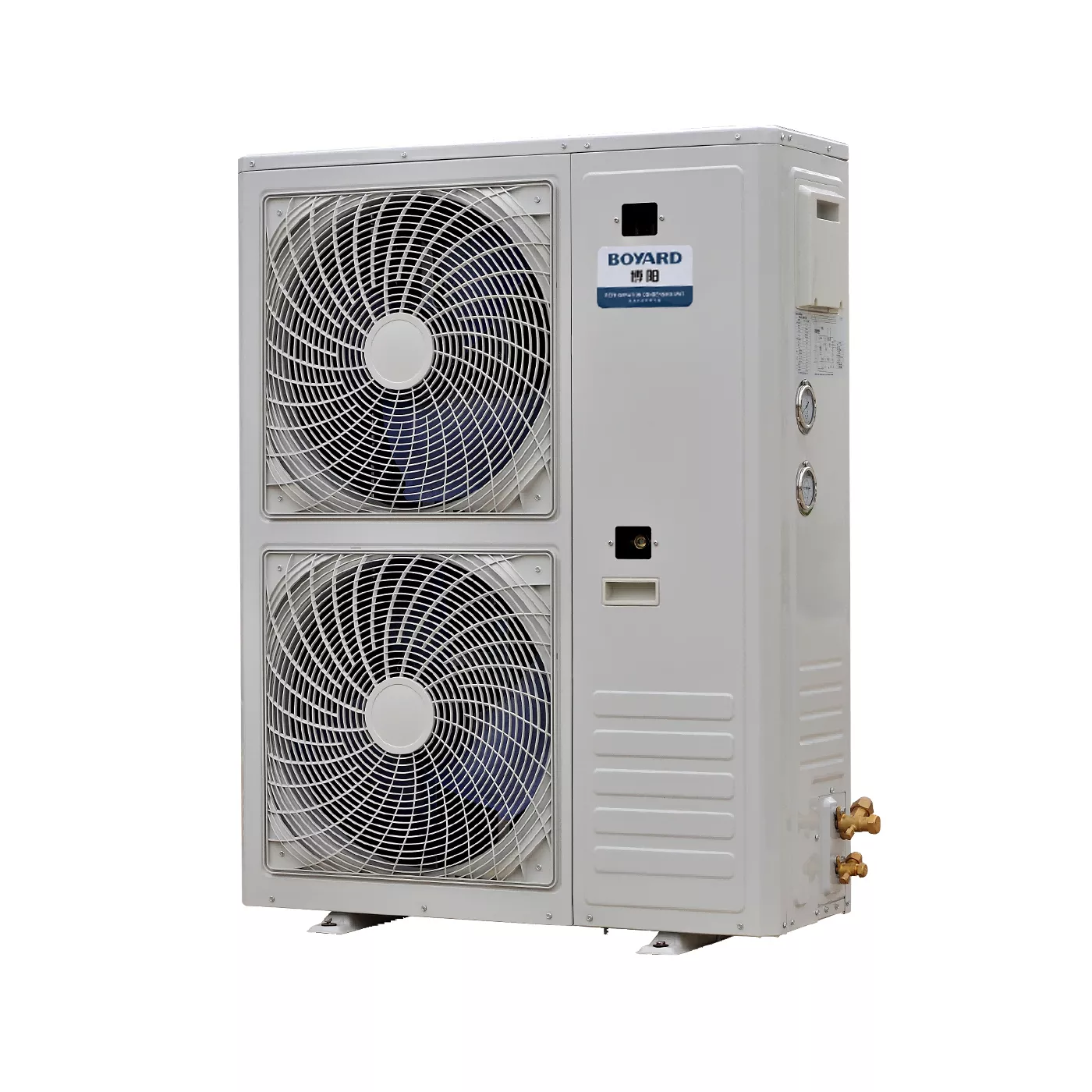

Copeland 3-12HP fixed frequency refrigeration outdoor unit BYGF-050-ZBM-SMLP
Copeland 3-12HP fixed frequency refrigeration outdoor unit BYGF-050-ZBM-SMLP - Image 2
Copeland 3-12HP fixed frequency refrigeration outdoor unit BYGF-050-ZBM-SMLP - Image 3

Copeland 3-12HP fixed frequency refrigeration outdoor unit BYGF-050-ZBM-SMLP

Category: Outdoor Remote Condensing Units
Technical Data of 3-12HP Side Air Refrigerating Unit（R22 Copeland）
ModelBYGF-030-ZBM-SMLPBYGF-040-ZBM-SMLPBYGF-050-ZBM-SMLP
Power Supply3PH  380V  50Hz
Horsepower3 HP4 HP5 HP
RefrigerantR22
Evap.Temp(℃)-12～10
Ambient Temp(℃)-15～48
Basic configurationCompressorZB21KQZB29KQZB38KQ
Pressure Controller(Mpa)Diaphragm type high pressure switch
Low Pressure Adjustable Pressure Switch
Fam Motor65W*165W*2
Reservoir2.5L4L
Dryer filter083S084S
sight glass3/81/2″
Oil pressure gaugeHigh pressure oil pressure gauge+Low pressure oil pressure gauge
Liquid  ValveLiquid Injection Valve or Electronic expansion valve
Electric controlAC contactor18/01
Control boardFunctions such as phase sequence protection and phase loss protection, exhaust temperature protection, liquid spraying control, speed regulation control of condensing fan, fault code alarm output, etc
(mm)
Pipe		Gas Inlet Diam OD5/8″（15.88）3/4″(19.05)
 Liquid Outlet OD3/8″(9.53)1/2″(12.7)
Product size(mm)1015*420*8501015*420*1250
Installation dimension(mm)580*385
Optional configurationOil separatorBLR/A-W  55833BLR/A-W 55824
Refrigeration solenoid valve3/8″(9.53)1/2″(12.7)
Accumulator1L2.8L
Crankshaft heating belt40W
(W）
Capacity		(℃) Evap TempTest conditions：GB/T 21363-2018    Ambient Temp:32℃   Sub-cooling 0℃   Suction temperature  18℃
-10485066008300
-5577078009800
06750910011500
578501060013300
  1. Copeland 3-12HP fixed frequency refrigeration outdoor unit
  2. Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  3. Able to assemble with multi-brand compressors,such as BOYARD, COPELAND, SANYO, HITACHI, etc.;
  4. The condenser is optimized and upgraded to reduce the charging volume of refrigerant.
    Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  5. The heat exchange area is more than 20% larger than competitive products in market, able to be run at 48 C ambient temp.;
  6. The unit is equipped with microcomputer control panel and sight glass as standard, which is convenient for terminal commissioning:
  7. Able to be customized based on customer’s requirement
Contact

Share:

Previous
HBP/MBP,4cc ,24V DC,R32/R454B/R410A,Variable Speed,Twin Cylinder Compressor
Next

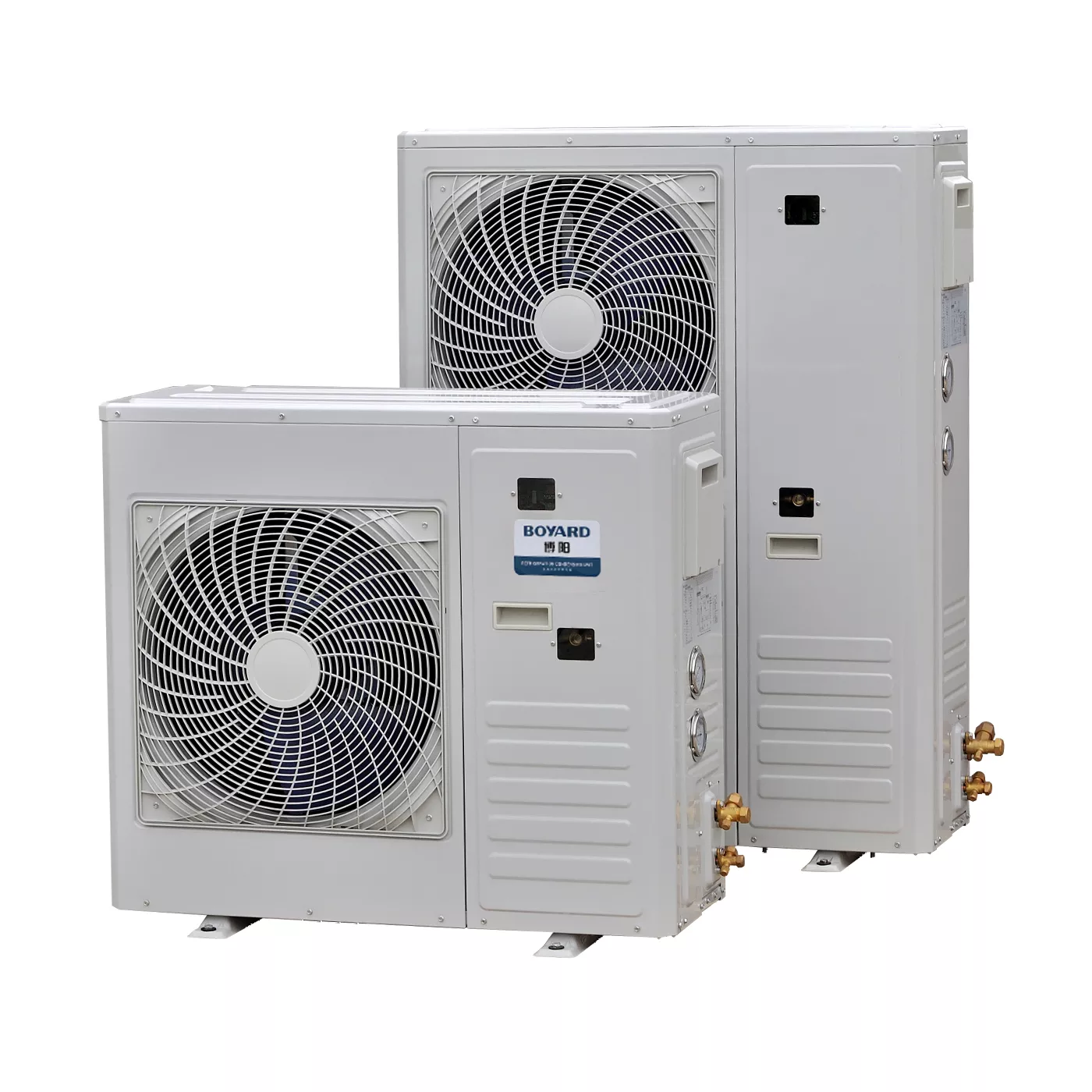

Copeland 3-12HP fixed frequency refrigeration outdoor unit BYGF-040-ZBM-SMLP
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

  1. Copeland 3-12HP fixed frequency refrigeration outdoor unit
  2. Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  3. Able to assemble with multi-brand compressors,such as BOYARD, COPELAND, SANYO, HITACHI, etc.;
  4. The condenser is optimized and upgraded to reduce the charging volume of refrigerant.
    Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  5. The heat exchange area is more than 20% larger than competitive products in market, able to be run at 48 C ambient temp.;
  6. The unit is equipped with microcomputer control panel and sight glass as standard, which is convenient for terminal commissioning:
  7. Able to be customized based on customer’s requirement

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

  1. Copeland 3-12HP fixed frequency refrigeration outdoor unit
  2. Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  3. Able to assemble with multi-brand compressors,such as BOYARD, COPELAND, SANYO, HITACHI, etc.;
  4. The condenser is optimized and upgraded to reduce the charging volume of refrigerant.
    Include fixed frequency unit and varible frequency unit, horse power from 1 to 12HP;
  5. The heat exchange area is more than 20% larger than competitive products in market, able to be run at 48 C ambient temp.;
  6. The unit is equipped with microcomputer control panel and sight glass as standard, which is convenient for terminal commissioning:
  7. Able to be customized based on customer’s requirement

Application

Cooling For Better Life

Professional manufacturer of rotary compressor for more than 15 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual cynlinder series provides better performance Customization service to fulfill the market needs

FAQ

Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.

Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.

DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.

When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.

We have one year warranty for manufacturers.

We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
