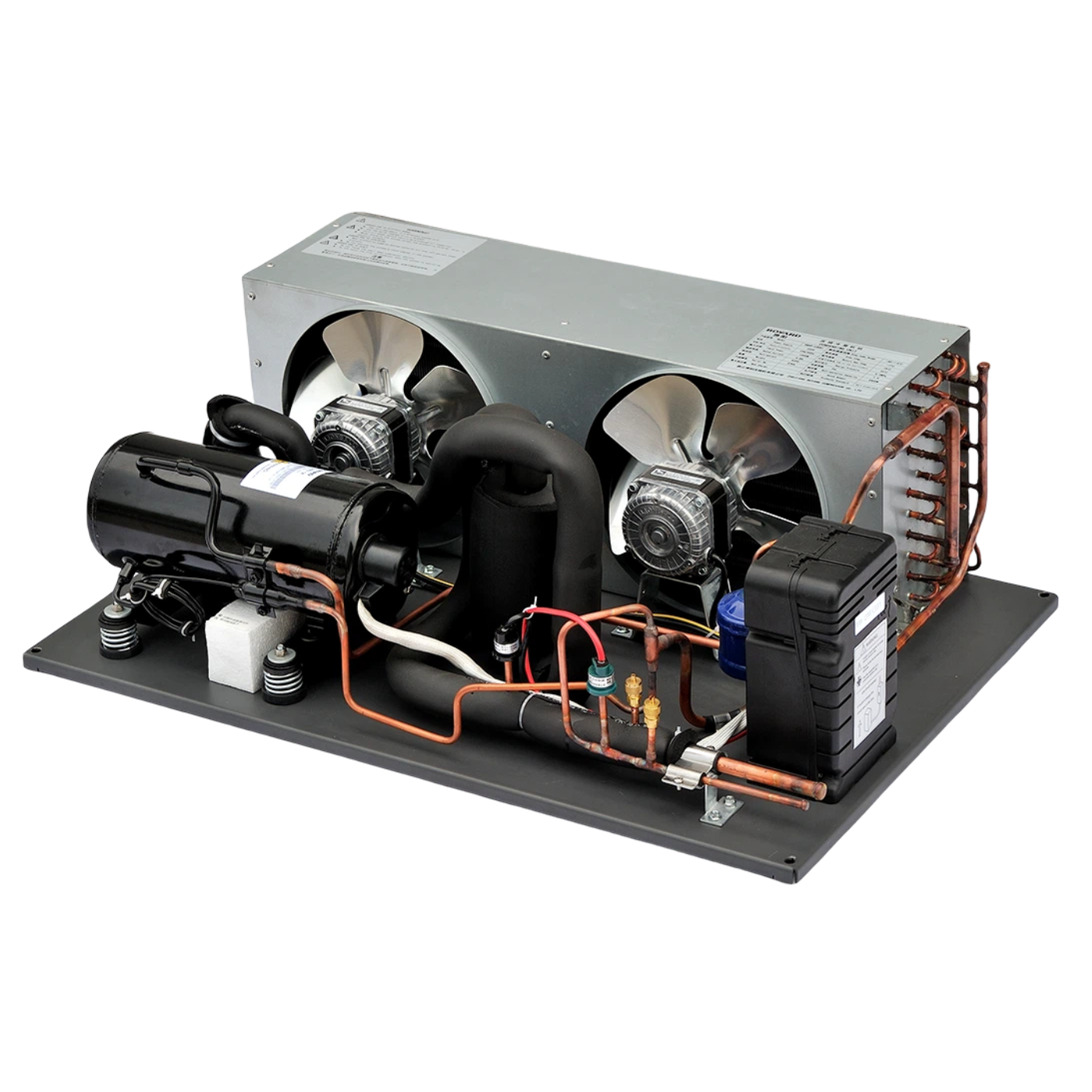

| CDU008LKDF_BY | ||||||
| Power Supply | HP | Refrigerant | Cooling Capacity(W) | Evap. Temp.(℃) | Product Dimension(mm) | |
| Te=-10℃, Tsuc=18℃, Ta=32℃ | Te=-30℃, Tsuc=18℃, Ta=32℃ | |||||
| 1PH 220V 50/60 Hz | 1.0 HP | R448A/R449A/A2L/ R404A | 1315 | 550 | -40～-5 | 680*485*263 |
| Test Condition | Evaporating Temp. | Condensing Temp. | Suction Temp. | Liquid Temp. |
| HBP | 7.2℃ | 54.5℃ | 18.3℃ | 46.1℃ |
| MBP | -6.7℃ | 54.5℃ | 18.3℃ | 32.2℃ |
| LBP | -23.3℃ | 54.5℃ | 18.3℃ | 32.2℃ |
| R448A/R404A/A2L 220V AC Horizontal Condensing Unit | ||||||||||
| Model | CDU008LKDF_BY | CDU010LKDF_BY | CDU012LKDF_BY | CDU015LKDF_BY | CDU020LKDF_BY | CDU022LKDF_BY | CDU025LKDF_BY | CDU030LKDF_BY | ||
| Previous Model | HQHD-13KBP | HQHD-16KBP | HQSD-203KBP | HQHD-23KBP | HQHD-30KBP | HQSD-329KBP20 | HQHD-36KBP | HQSD-456KBP | ||
| Nominal Input (W) | 820 | 1000 | 1175 | 1540 | 1910 | 2010 | 2130 | 2800 | ||
| Power Supply | 1PH 220～240V 50Hz | |||||||||
| Refrigerant | R448A / R449A / R454C / R455A / R404A | |||||||||
| Max Refrigerant Charging (kg) | 1.2 | 1.5 | 2.0 | 2.0 | 3.0 | 3.0 | 3.0 | 3.5 | ||
| Start-Up Current (A) | 20 | 27 | 30 | 38 | 42 | 38 | 50 | 65 | ||
| Max Running Current (A) | 5.0 | 6.2 | 8.0 | 9.2 | 11 | 12.0 | 12.5 | 16.0 | ||
| Evap. Temp (℃) | -40～-5 | |||||||||
| Ambient Temp (℃) | 0～43 (Condensing temperature control needs to be enabled when the ambient temperature is below 10°C.) | |||||||||
| Compressor Model | QHD-13K | QHD-16K | KHSD203KS | QHD-23K | QHD-30K | THSD329KS | QHD-36K | THSD456KS | ||
| R449A Cooling Capacity (W) | Evap. Temp (℃) | Ambient Temp: 32℃ Subcooling Temp: 0℃ | ||||||||
| -40 | 325 | 430 | 485 | 550 | 720 | 770 | 810 | 1145 | ||
| -35 | 445 | 560 | 595 | 715 | 890 | 960 | 1040 | 1365 | ||
| -30 | 550 | 650 | 745 | 805 | 1085 | 1165 | 1260 | 1730 | ||
| -25 | 615 | 775 | 945 | 1015 | 1275 | 1350 | 1550 | 2055 | ||
| -20 | 870 | 1110 | 1320 | 1390 | 1825 | 1960 | 2090 | 2895 | ||
| -15 | 1045 | 1420 | 1575 | 1650 | 2170 | 2315 | 2555 | 3150 | ||
| -10 | 1315 | 1590 | 1850 | 2090 | 2570 | 2755 | 3060 | 4225 | ||
| -5 | 1565 | 1810 | 2165 | 2405 | 2875 | 3275 | 3655 | 4940 | ||
