| MON030LKDF_BYW | ||||||||
| Evap. Temp (℃) | Ambient Temp (℃) | Input Power (W) | Maximum Current (A) | Cooling Capacity (W) | Applicable Storage Capacity (m³) | Overall Dimensions(mm) | ||
| Te=-7℃, Tsuc=18℃, Ta=32℃ | Te=-25℃, Tsuc=5℃, Ta=32℃ | Working Temp +2 ℃ | Working Temp -18℃ | |||||
| -40~-5 | -20~43 | 2800 | 16 | 4620 | 2055 | 40 | 20 | 855*925*730 |
| Test Condition | Evaporating Temp. | Condensing Temp. | Suction Temp. | Liquid Temp. |
| HBP | 7.2℃ | 54.5℃ | 18.3℃ | 46.1℃ |
| MBP | -6.7℃ | 54.5℃ | 18.3℃ | 32.2℃ |
| LBP | -23.3℃ | 54.5℃ | 18.3℃ | 32.2℃ |

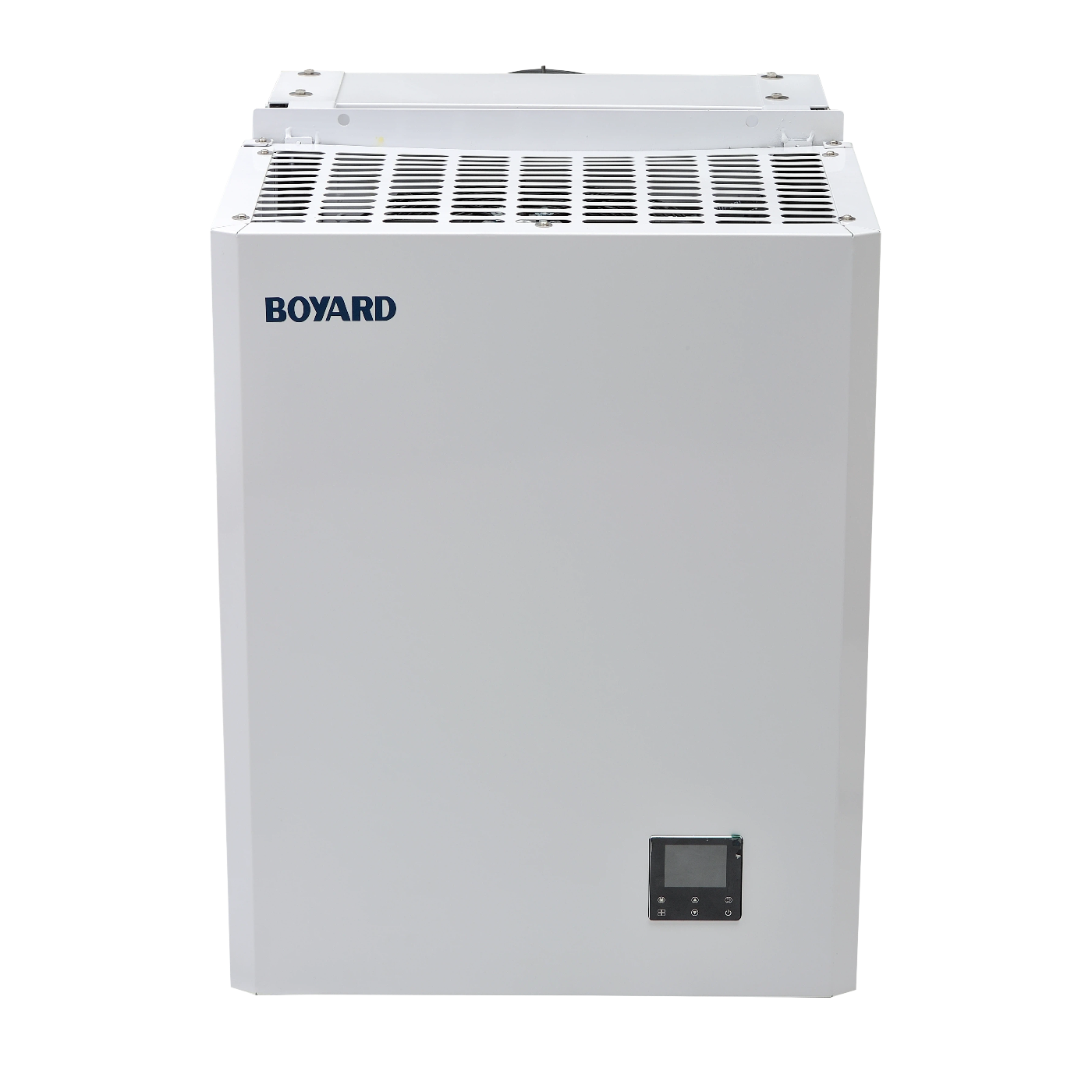

| R448A/R449A/R454C MBP/LBP Fixed Frequency Wall-Mounted Monoblock | |||||||
| Model | MON010LKDF_BYW | MON015LKDF_BYW | MON020LKDF_BYW | MON030LKDF_BYW | |||
| Previous Model | BYGY-010-QXD-REDP | BYGY-015-QXD-REDP | BYGY-020-QXD-REDP | BYGY-030-QXD-REDP | |||
| Nominal Input（W） | 1120 | 1465 | 2020 | 2800 | |||
| Power Supply | 220V 50/60 Hz | ||||||
| Refrigerant | R449A / R448A / R454C / R455A / R404A | ||||||
| Max Running Current （A） | 6.2 | 10.5 | 13.5 | 16.0 | |||
| Evap.Temp（℃） | -40～-5 | ||||||
| Ambient Temp（℃） | -20～43 | ||||||
| Compressor Model | KXSD176KS | KXSD203KS | TXSD329KS | TXSD456KS | |||
| R449A Cooling Capacity （W） | Evap. Temp(℃) | Ambient Temp:32℃ Subcooling Temp:0℃ | |||||
| -40 | 455 | 485 | 770 | 1145 | |||
| -35 | 550 | 595 | 960 | 1365 | |||
| -30 | 690 | 745 | 1165 | 1730 | |||
| -25 | 820 | 945 | 1350 | 2055 | |||
| -20 | 1150 | 1320 | 1960 | 2895 | |||
| -15 | 1470 | 1575 | 2315 | 3150 | |||
| -10 | 1650 | 1850 | 2755 | 4225 | |||
| -5 | 1880 | 2165 | 3275 | 4940 | |||
Professional manufacturer of rotary compressor for more than 20 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual Cylinder series provides better performance Customization service to fulfill the market needs
Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.
Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.
DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.
When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.
We have one year warranty for manufacturers.
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Want to learn more? We will arrange for our dedicated customer service to contact you as soon as possible
