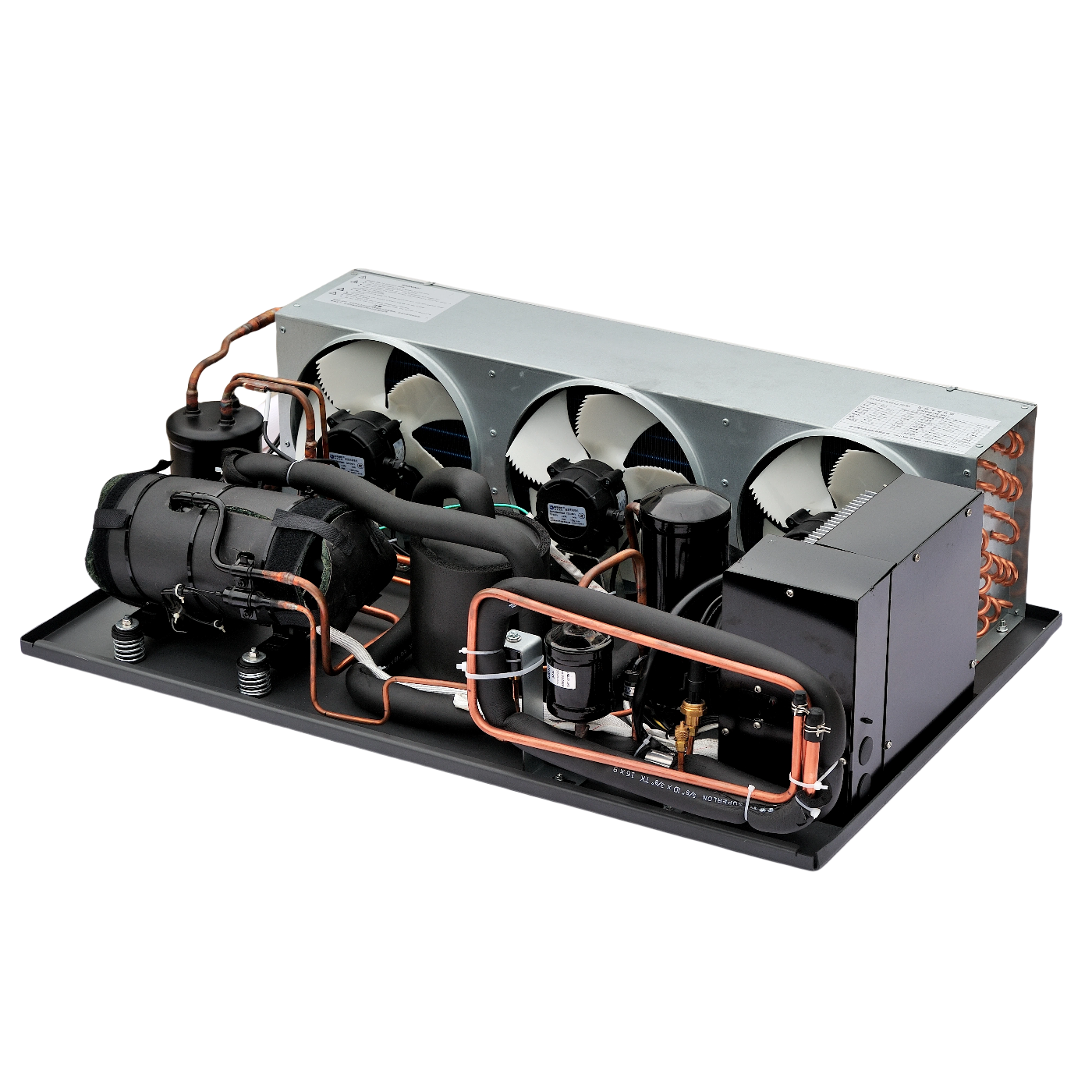

1.5 HP, R448A/R404A/A2L, Horizontal, Inverter Condensing Unit

Category: Indoor Condensing Units, Plugin Refrigeration System for Display cases, Systems

CDU012LKDV_BY
Power Supply	HP	Refrigerant	Cooling Capacity(W)		Evap. Temp.(℃)	Product Dimension(mm)
			Te=-10℃, Tsuc=18℃, Ta=32℃	Te=-30℃, Tsuc=18℃, Ta=32℃
1PH 220V 50/60 Hz	1.5 HP	R448A/R449A/A2L/ R404A	1880	760	-40～-5	790600251

1.5 HP, R448A/R404A/A2L, MBP/LBP, Horizontal Inverter Condensing Unit CDU012LKDV_BY
The compressor adjusts its operating frequency based on suction pressure or refrigerated cabinet temperature to reduce the number of start-stop cycles.
Adopts high efficiency rotary compressor and EBM motor. 20% energy saving.
Precise temperature control minimizes suction pressure fluctuations, stabilizes evaporation temperature, and reduces product dehydration.
Compact in size with horizontal compressor.
Special liquid injection cooling tube design of the compressor ensures continuously working of the condensing unit under high ambient temperature.
Suitable for multiple refrigerated cabinets or cold storage rooms, with quick response to refrigeration load changes.
Configurable control schemes allow selection between target temperature control or suction pressure-based regulation of compressor frequency.
Capable of operating within an evaporation temperature range of -40°C to +5°C.

Share:

Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cylinder series provides better performance.

Parameter

TEST CONDITIONS：

Test Condition	Evaporating Temp.	Condensing Temp.	Suction Temp.	Liquid Temp.
HBP	7.2℃	54.5℃	18.3℃	46.1℃
MBP	-6.7℃	54.5℃	18.3℃	32.2℃
LBP	-23.3℃	54.5℃	18.3℃	32.2℃

R448A/R404A/A2L Horizontal Inverter Condensing Unit
Model		CDU012LKDV_BY	CDU020LKDV_BY	CDU025LKDV_BY	CDU030LKDV_BY	CDU035LKDV_BY
Nominal Input (W)		1200	1550	1950	2550	2890
Power Supply		220V 50/60 Hz
Refrigerant		R448A / R449A / R454C / R455A / R404A
Max Refrigerant Charging (kg)		1.8	2.5	3.5	3.5	4.5
Max Running Current (A)		6	10.5	13.5	16.5	20.0
Evap. Temp (℃)		-40～-5
Ambient Temp (℃)		10～43
Compressor Model		JHSD150Z312	KHSD203Z312	KHSD300Z312	KHSD300Z312	THSD456Z312
R449A Cooling Capacity (W)	Evap. Temp (℃)	Ambient Temp.: 32℃ Subcooling Temp.: 0℃
	-40	495	705	830	1105	1260
	-35	600	870	1055	1315	1510
	-30	760	1050	1240	1680	1930
	-25	965	1260	1470	1980	2275
	-20	1325	1775	2115	2780	3210
	-15	1595	2105	2585	3005	3475
	-10	1880	2490	3100	4040	4870
	-5	2180	2770	3690	4745	5495

Application

Commercial Refrigeration

Boyard refrigeration rotary compressors are the ideal choice for various refrigeration equipment such as display case cabinets and condensing units.

Transport Refrigeration

Boyard horizontal compressors excel in transport refrigeration, providing reliable cooling solutions for vehicles like vans, trailers, and food trucks.

Transport HVAC

Boyard compressors offer unparalleled performance and reliability, providing efficient heating and cooling for vehicles such as buses, trucks, and RVs.

Air Conditioning & Heat Pump

Boyard compressors are a leading choice for air conditioning and heat pump applications due to their high COP, reliability, and quiet operation.

Specialty Cooling

Boyard compressors are highly regarded in specialty cooling applications, offering tailored solutions for medical equipment, laboratory refrigeration, laser-cooling, industrial cooling systems.
