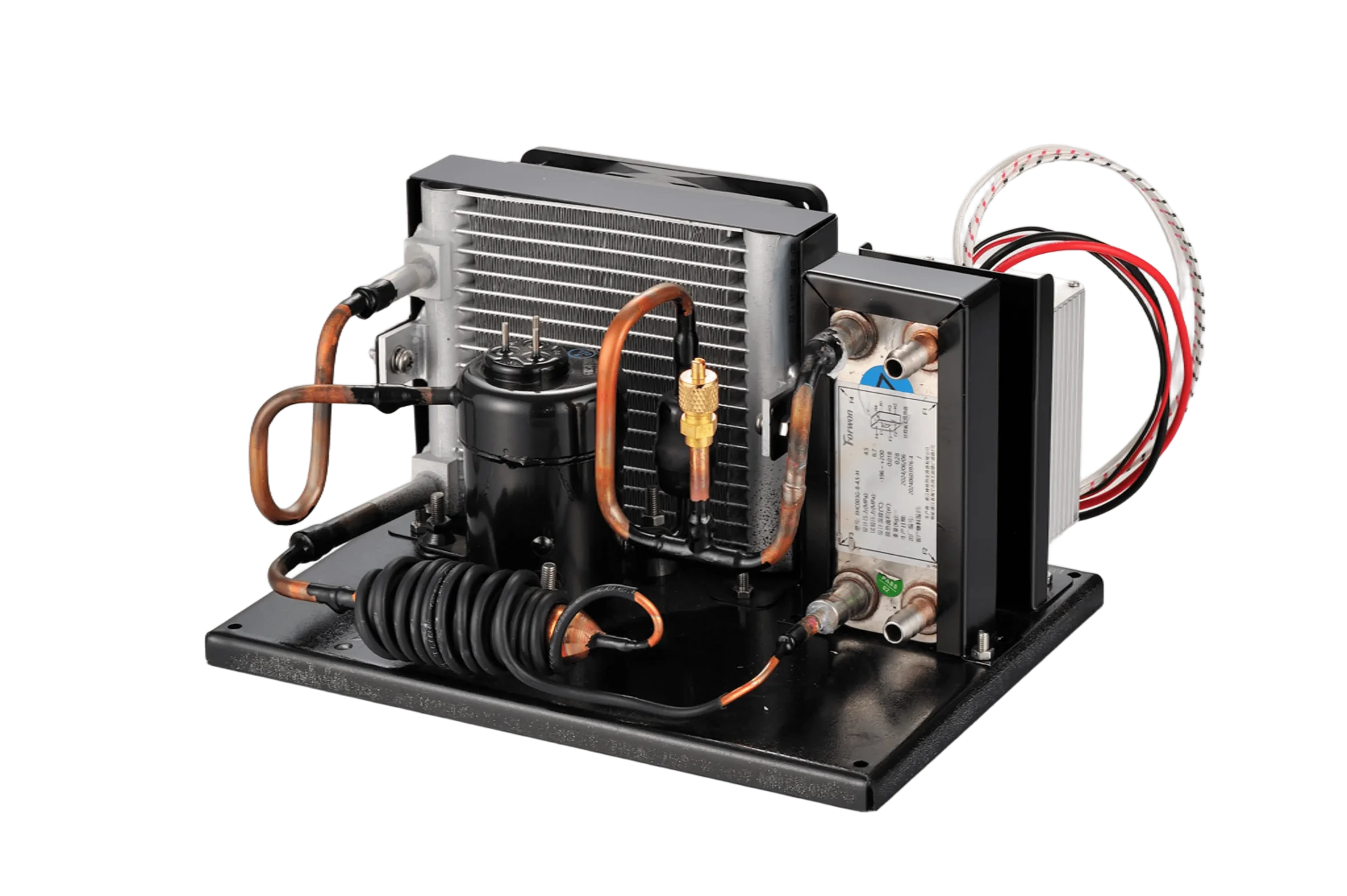

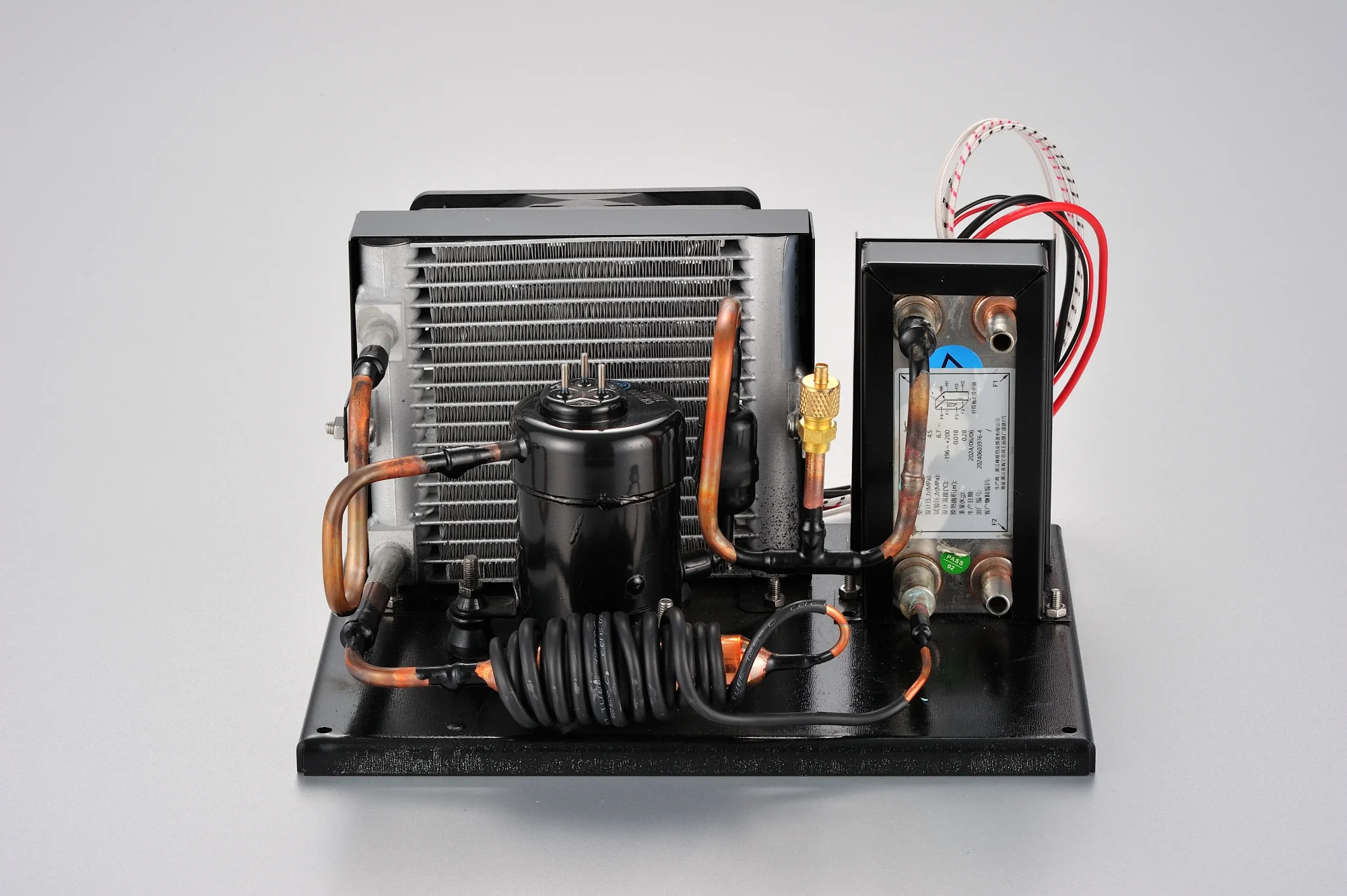

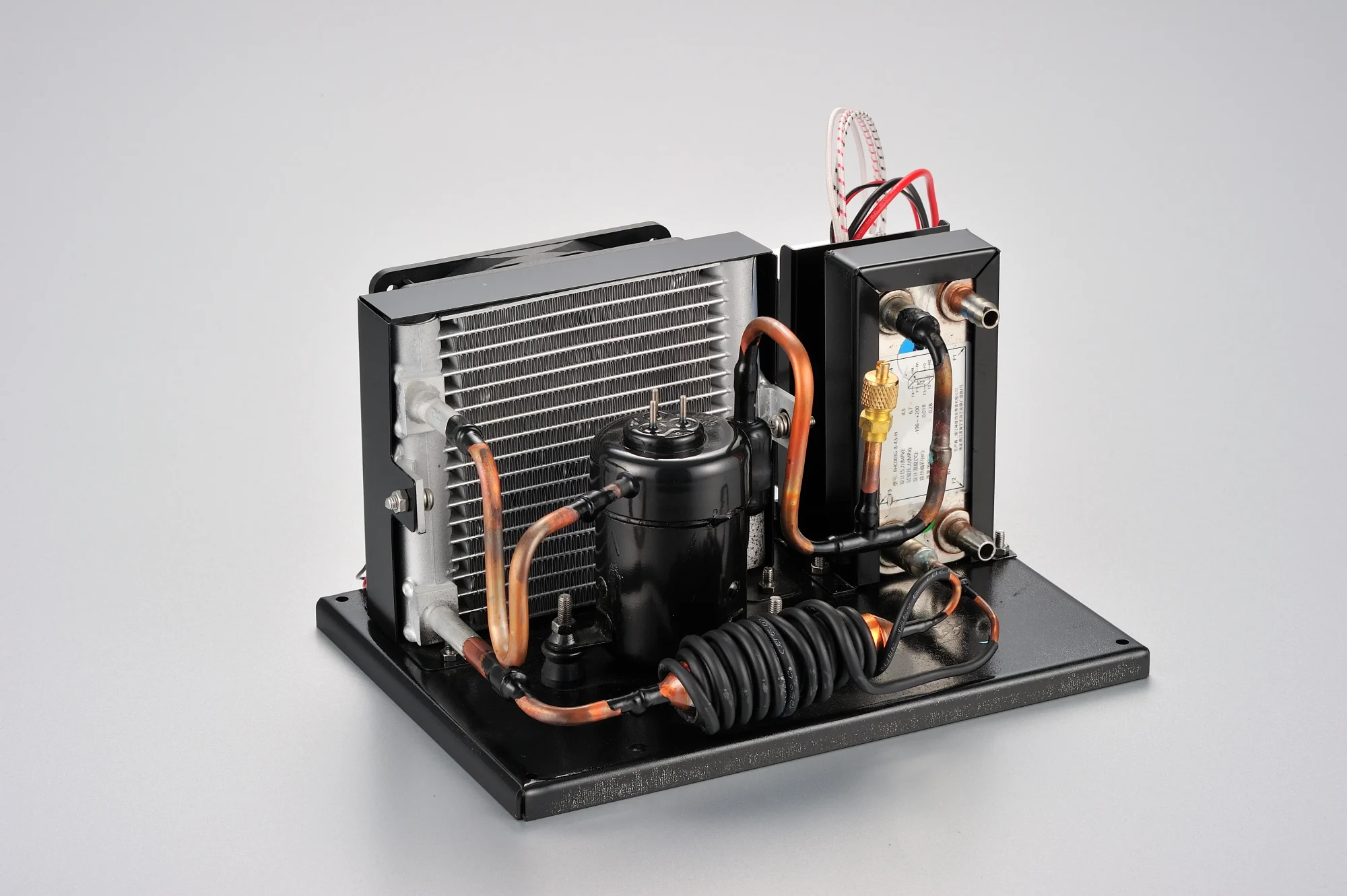

300W Capacity, R1234yf/R513A/R134a, 24V DC, Liquid Cooling Mini Chiller
BYL020BDC24-P2_1
BYL020BDC24-P2_2
BYL020BDC24-P2_3

300W Capacity, R1234yf/R513A/R134a, 24V DC, Liquid Cooling Mini Chiller

Category: Systems, Mini Chillers
  • DC 24V Liquid Cooling Mini Chiller with Miniature Compressor for Medical Laser Equipment
  • This mini water chiller unit has compressor with DC driver/ controller
  • Compact size and small footprint
  • Evaporator and other components can be customized
  • It can be applied in the fields of Bio-instruments, laser machine cooling, electronics liquid cooling and cold therapy and so on.
Contact

Share:

Previous
650W Capacity, R1234yf/R513A/R134a, 24V DC, Mini Condensing Unit
Next
1 HP, R448A/R404A/A2L, 220V AC, Monoblock&Packaged Refrigeration System
Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cynlinder series provides better performance.

Parameter

TEST CONDITIONS：

Test ConditionEvaporating Temp.Condensing Temp.Suction Temp.Liquid Temp.
Condition A7.2℃54.4℃35℃46.1℃
Condition B7.2℃54.4℃18.3℃46.1℃
Condition C-6.7℃54.4℃35℃46.1℃
Condition D-23.3℃54.4℃18.3℃32.2℃

Water Cooling Condensing Unit Category
SeriesSeries ASeries BSeries C
Cooling Capacity（W)200-500W500-800W800-1500W
Compressor Displacment （cm3/r)1.91.92.73.83.84.64.67.57.512.5
DC Voltage（V)122424244824482448312
RefrigerantR134aR134aR134aR134aR134aR134aR134aR134aR134aR134a
ModelBYC019AB/DC12
BYC019AT/DC12
BYC019AC/DC12		BYC019AB/DC24
BYC019AT/DC24
BYC019AC/DC24		BYC027AB/DC24
BYC027AT/DC24
BYC027AC/DC24		BYC038AB/DC24
BYC038AT/DC24
BYC038AC/DC24		BYC038AB/DC48
BYC038AT/DC48
BYC038AC/DC48		BYC046AB/DC24
BYC046AT/DC24
BYC046AC/DC24		BYC046AB/DC48
BYC046AT/DC48
BYC046AC/DC48		BYC075AB/DC24
BYC075AT/DC24
BYC075AC/DC24		BYC075AB/DC48
BYC075AT/DC48
BYC075AC/DC48		BYC125AB/DC312
BYC125AT/DC312
BYC125AC/DC312
Condenser TypeTube Type/Micro Channel
Evaporator TypeB-Plate Heat Exchanger；   T-Coaxial；   C-Coil；

Application

Cooling For Better Life

Professional manufacturer of rotary compressor for more than 15 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual cynlinder series provides better performance Customization service to fulfill the market needs

FAQ

Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.

Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.

DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.

When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.

We have one year warranty for manufacturers.

We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
