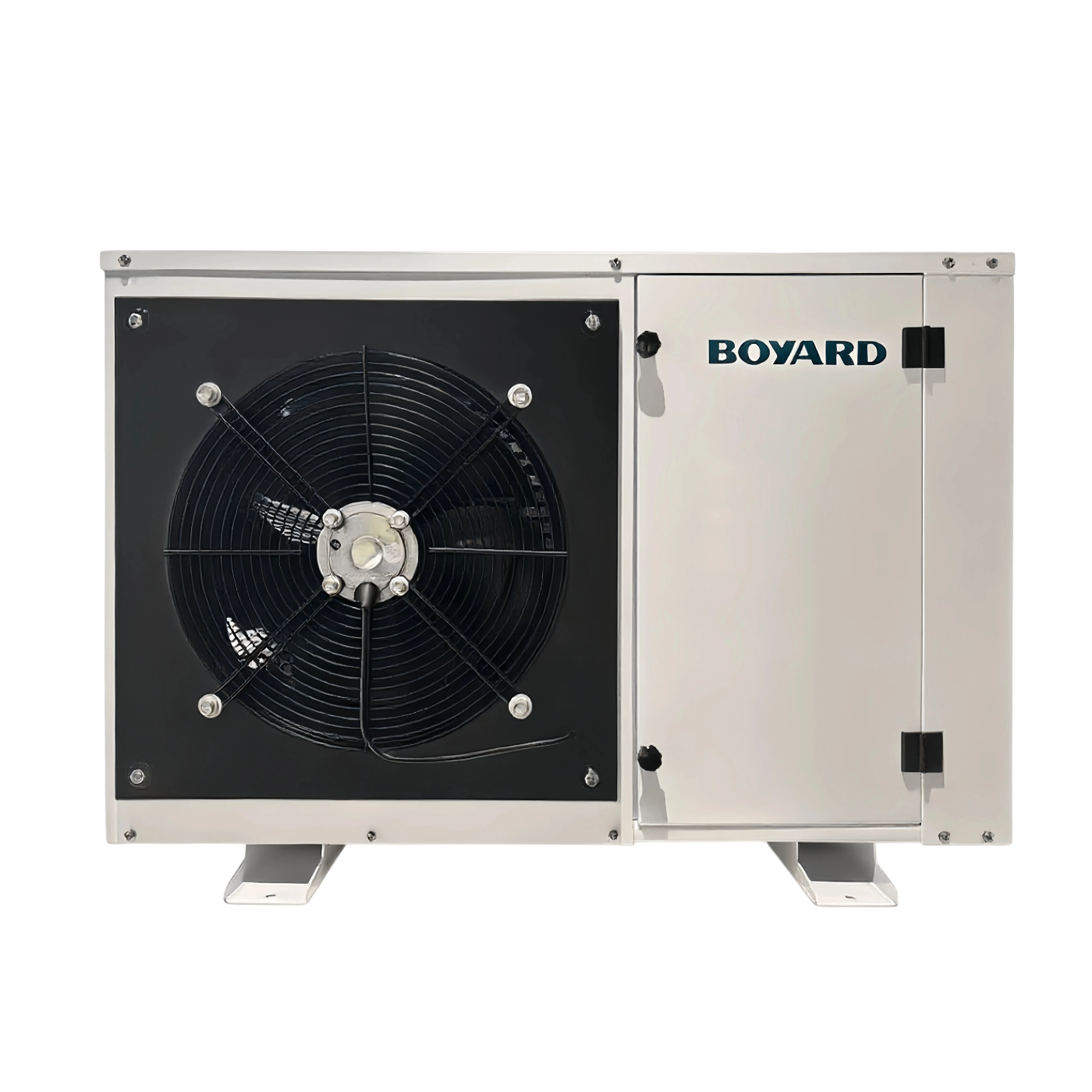

3.0 HP, MBP/LBP, A2L, 220V AC Outdoor Refrigeration Unit

Category: Outdoor Remote Condensing Units, Systems

BYGF-030-QXD-SEDP-N1
Power Supply	HP Compressor	Refrigerant	Cooling Capacity(W)		Evap. Temp.(℃)	Compressor Model	Product Dimension(mm)
			Te=-10℃, Tsuc=18℃, Ta=32℃	Te=-30℃, Tsuc=18℃, Ta=32℃
1PH 220V 50Hz	3.0 HP	A2L	4254	1936	-40～-5	TXSD456KS	1045450815

3.0 HP, MBP/LBP, A2L, 220V AC Outdoor Refrigeration Unit BYGF-030-QXD-SEDP-N1 with Boyard TXSD456KS, compatible with A2L refrigerant.
Optimized condenser design reduces refrigerant charge while increasing heat exchange area by over 20% compared to similar products on the market.
Boyard self-manufactured rotary compressor with high COP for excellent energy efficiency.

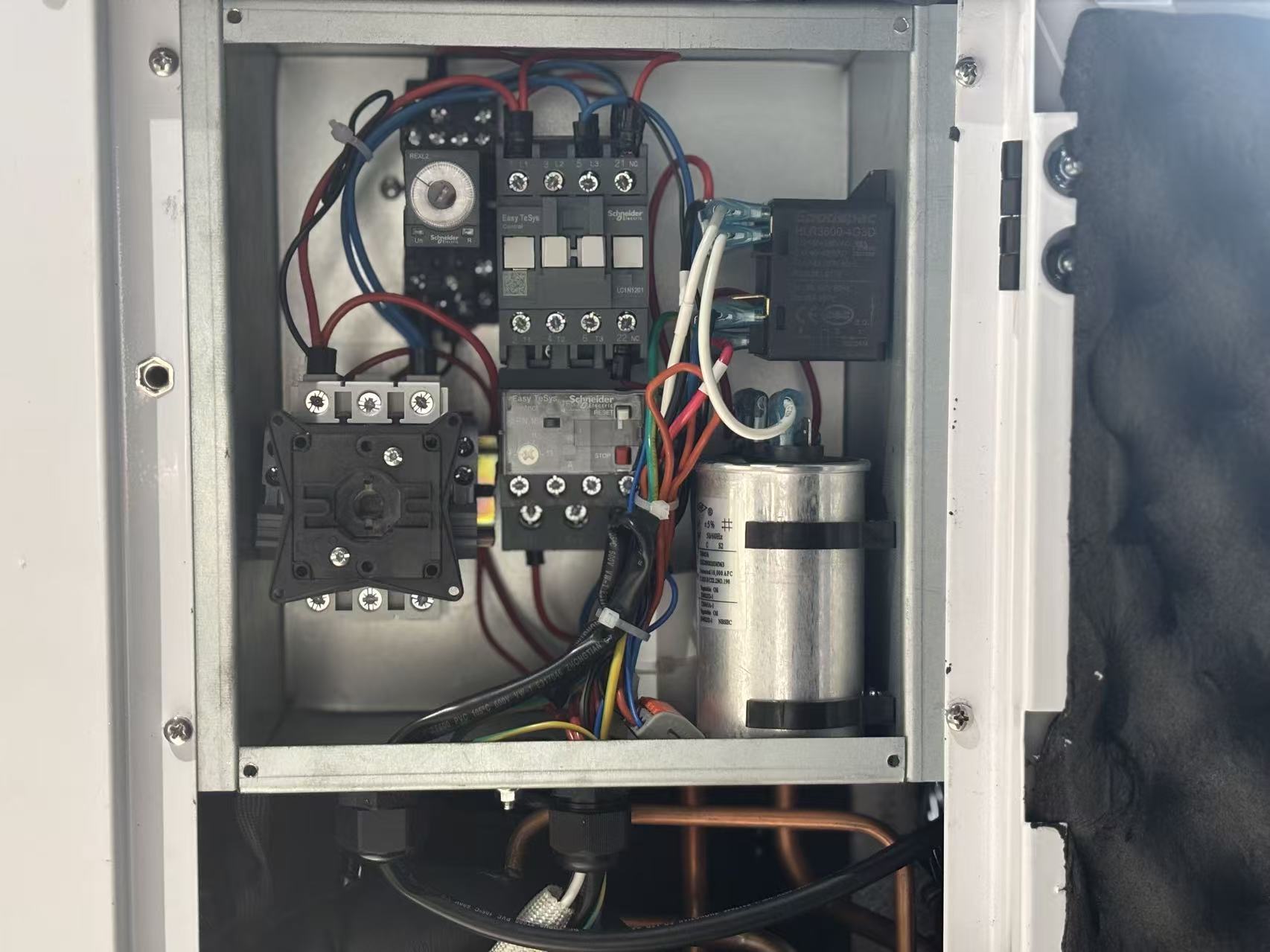

Electrical components are housed in a dedicated electrical cabinet, isolated from the compressor section, and equipped with a small fan for active ventilation to prevent refrigerant ingress in case of leakage.
All components are sourced from internationally renowned brands, with support for customized customer requirements.
High-performance soundproofing for the compressor, combined with adjustable fan speed, ensures low operating noise.
Access panels are provided for both the refrigeration and electrical sections, allowing direct component access without disassembly, facilitating easy maintenance and assembly.

Share:

Customized

Customization service to fulfill the market needs.

Reliable quality

Quality control being applied from product design to production.

Design capacity

Mature Horizontal Design & Compact Size.

Better Performance

Dual cylinder series provides better performance.

Parameter

TEST CONDITIONS：

Test Condition	Evaporating Temp.	Condensing Temp.	Suction Temp.	Liquid Temp.
HBP	7.2℃	54.5℃	18.3℃	46.1℃
MBP	-6.7℃	54.5℃	18.3℃	32.2℃
LBP	-23.3℃	54.5℃	18.3℃	32.2℃

1-4 HP A2L MBP/LBP Fixed-Speed Outdoor Refrigeration Unit
Model		BYGF-010-QXD-SEDP-N1	BYGF-015-QXD-SEDP-N1	BYGF-020-QXD-SEDP-N1	BYGF-025-QXD-SEDP-N1	BYGF-030-QXD-SEDP-N1	BYGF-040-QXD-SMDP-N1
Power Supply		1PH 220V/50Hz					3PH 380V 50Hz
Horsepower		1 HP	1.5 HP	2 HP	2.5 HP	3 HP	4 HP
Refrigerant		A2L
Refrigerant Max.（Kg）		1.5	2.0	2.5	3.0	3.5	4.5
Evap.Temp.(℃)		-40～-5 ℃
Ambient Temp.(℃)		﹣20～46℃
Compressor Model		QXD-16K	QXD-23K	QXD-30K	QXD-36K	TXSD456KS	XFV28B-A1-81
Product Dimension(mm)		930410595			1045450815
Installation Dimension(mm)		710*370			820*410
R454C Cooling Capacity (W)	Evap Temp.(℃)	Test Conditions:GB/T 21363-2018 Ambient Temp.:32℃ Subcooling Temp.:0℃ Suction Temp.:18℃
	-40	526	719	870	1011	1283	2040
	-35	696	949	1114	1297	1528	2557
	-30	808	1105	1354	1575	1936	3431
	-25	1029	1410	1697	1974	2336	3854
	-20	1222	1673	1983	2303	2914	4512
	-15	1560	2134	2421	2815	3337	5405
	-10	1748	2388	2905	3375	4254	6439
	-5	1993	2726	3469	4033	5114	7614
