| R410A 1PH 115V 60Hz | ||||||||
| Model | (cc/rev) Displacement | (W) Capacity | (W) Input Power | (A) Current | COP (W/W) | Height | Test Conditions | Form |
| SFA138T | 13.5 | 3920 | 1350 | 12.2 | 2.9 | 190 | A | H |

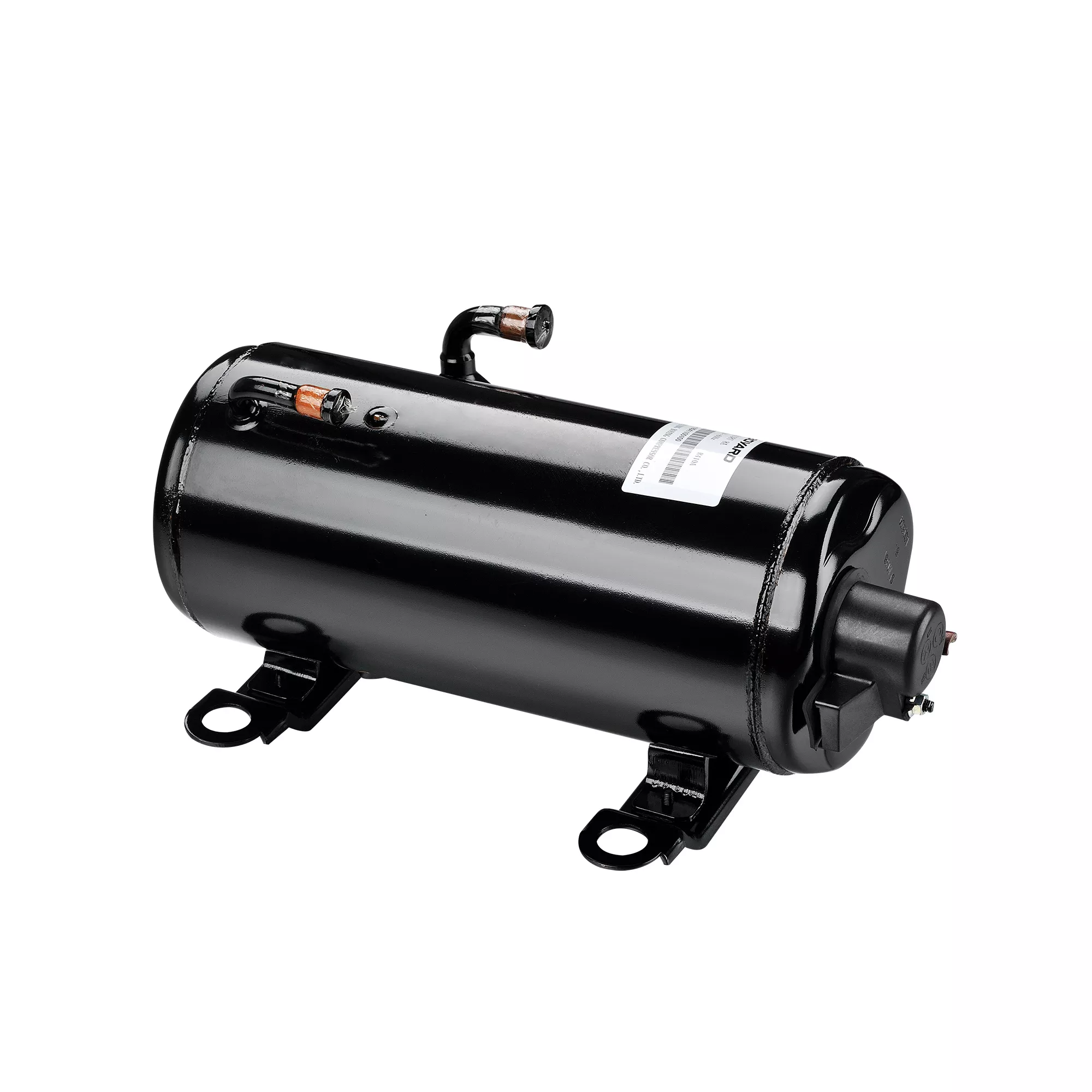

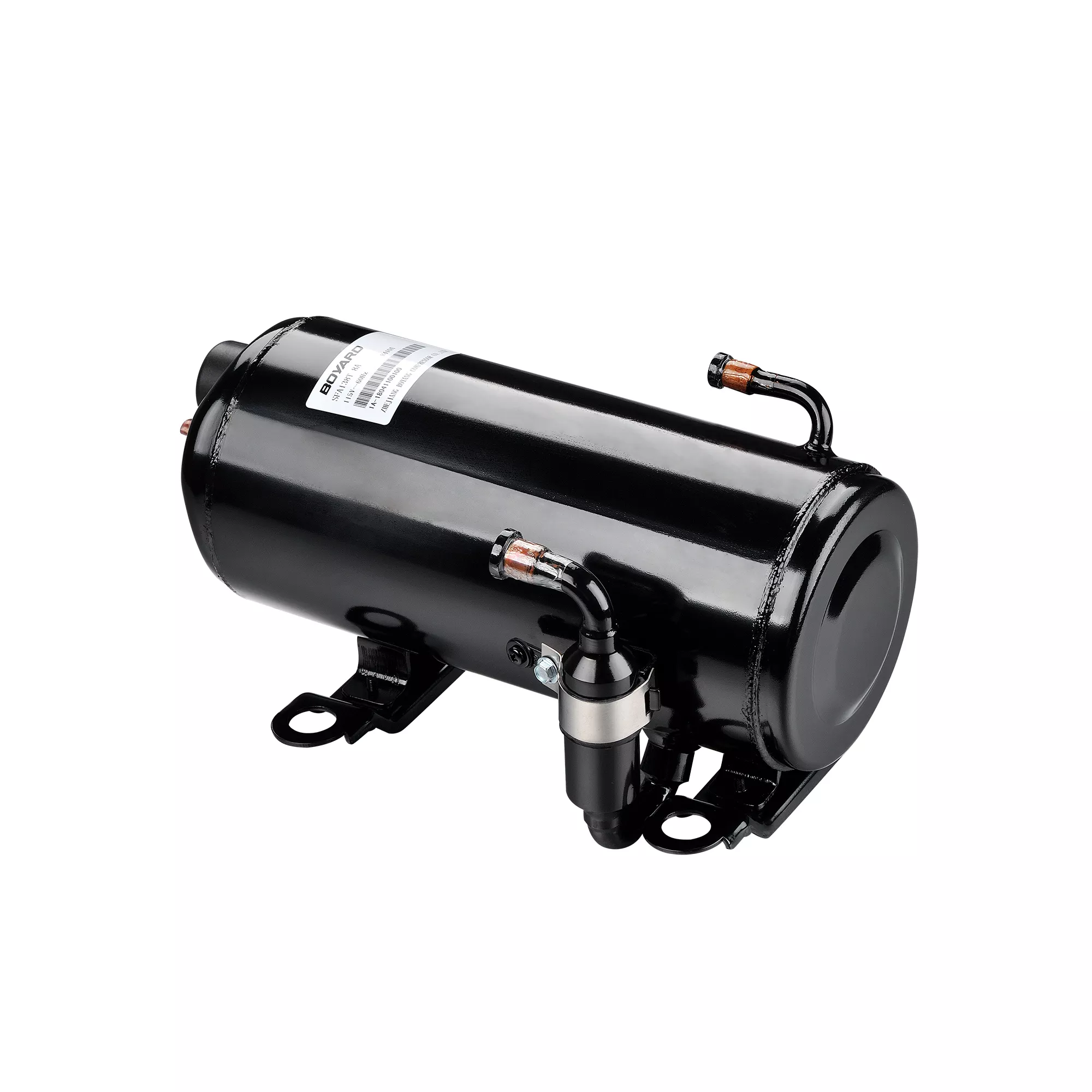

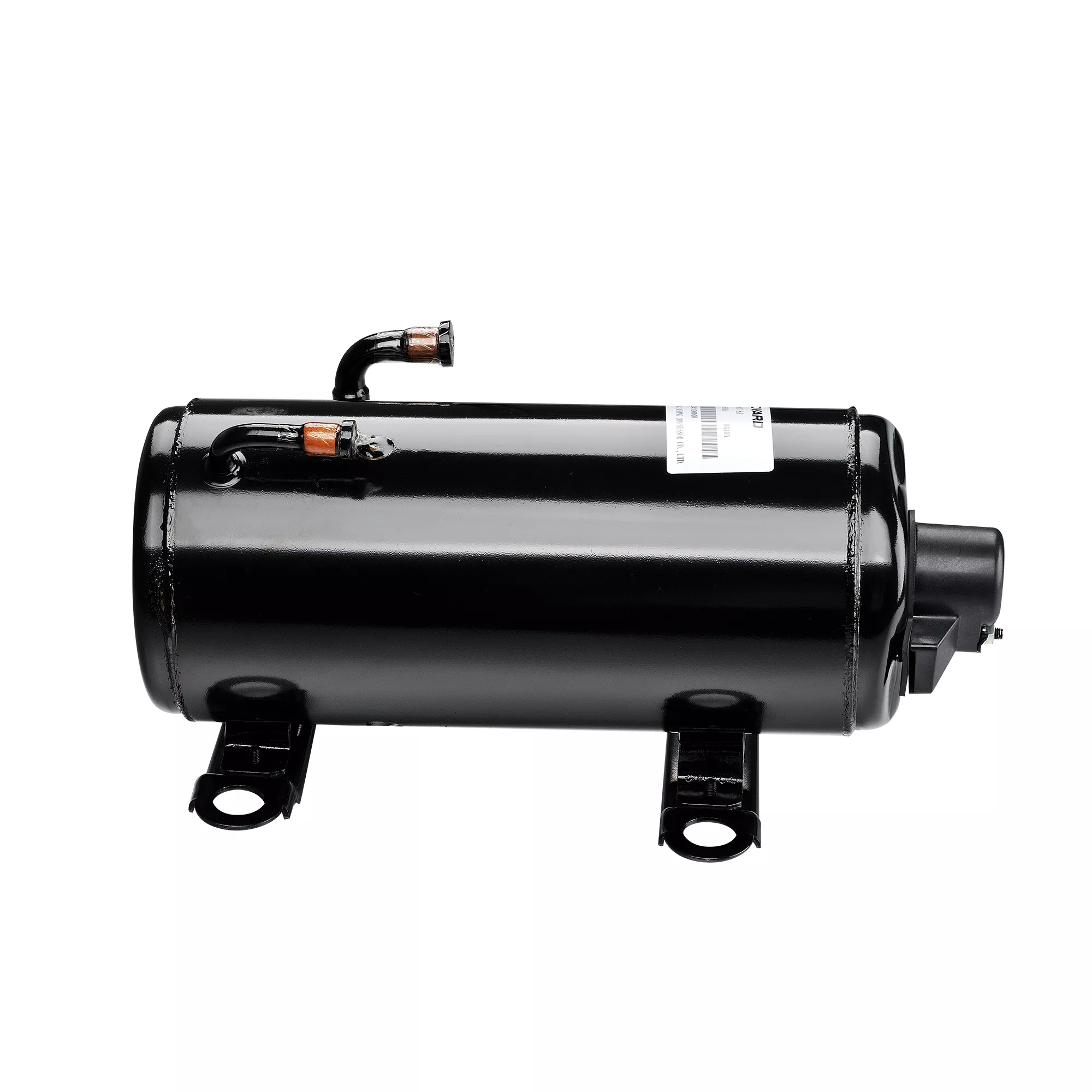

HBP/MBP,13.8cc ,115V AC,R410A Compressor
- Mini Van AC Compressor 115V 60HZ R410A 3920W Capacity 1350 Input Power 190mm Height Vehicles Air Conditioner Cooling System
- Horizontal structure makes the roof top AC unit more compact. (Vertical form is also available)
- lowe noise and vibration, providing comfortable environment for customers.
- Special oil structure improves the reliability of the compressor.
Inquiry
Parameter
TEST CONDITIONS：
| Test Condition | Evaporating Temp. | Condensing Temp. | Suction Temp. | Liquid Temp. |
| Condition A | 7.2℃ | 54.4℃ | 35℃ | 46.1℃ |
| Condition B | 7.2℃ | 54.4℃ | 18.3℃ | 46.1℃ |
| Condition C | -6.7℃ | 54.4℃ | 35℃ | 46.1℃ |
| Condition D | -23.3℃ | 54.4℃ | 18.3℃ | 32.2℃ |
SIMILAR ITEMS
| R410A 1PH 115V 60Hz | ||||||||
| Model | (cc/rev) Displacement | (W) Capacity | (W) Input Power | (A) Current | COP (W/W) | Height | Test Conditions | Form |
| JFA058T | 5.8 | 1740 | 600 | 5.3 | 2.9 | 170 | A | H |
| JFA075T | 7.5 | 2200 | 780 | 6.9 | 2.83 | 170 | A | H |
| KFA092T | 9.2 | 2760 | 950 | 8.75 | 2.9 | 185 | A | H |
| KFA102T | 10.2 | 3000 | 1058 | 9.2 | 2.83 | 190 | A | H |
| KFA113T | 11.3 | 3360 | 1160 | 10.5 | 2.9 | 190 | A | H |
| SFA138T | 13.5 | 3920 | 1350 | 12.2 | 2.9 | 190 | A | H |
H:Horizontal Type V：Vertical Type
Application
Truck parking air conditioner
What is parking air conditioning? Parking air conditioner is a…
View More
Special vehicle air conditioner
Intro With rich experience of RV and truck a/c compressor solution,…
View More
Commercial refrigeration
What is commercial refrigerators and freezer？ As a terminal equipment…
View More
Mobile Cold Chain
Intro Boyang supported compressor solutions for mobile cold chain field for…
View More
Horizontal ceiling mounted system
Intro Boyang expertise at designing and manufacturing horizontal type compressors, and…
View More
Cooling For Better Life
Professional manufacturer of rotary compressor for more than 15 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual cynlinder series provides better performance Customization service to fulfill the market needs
IATF16949
ISO14001
ISO9001
CE
UL
ROHS
FAQ
Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.
Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.
DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.
When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.
We have one year warranty for manufacturers.
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
