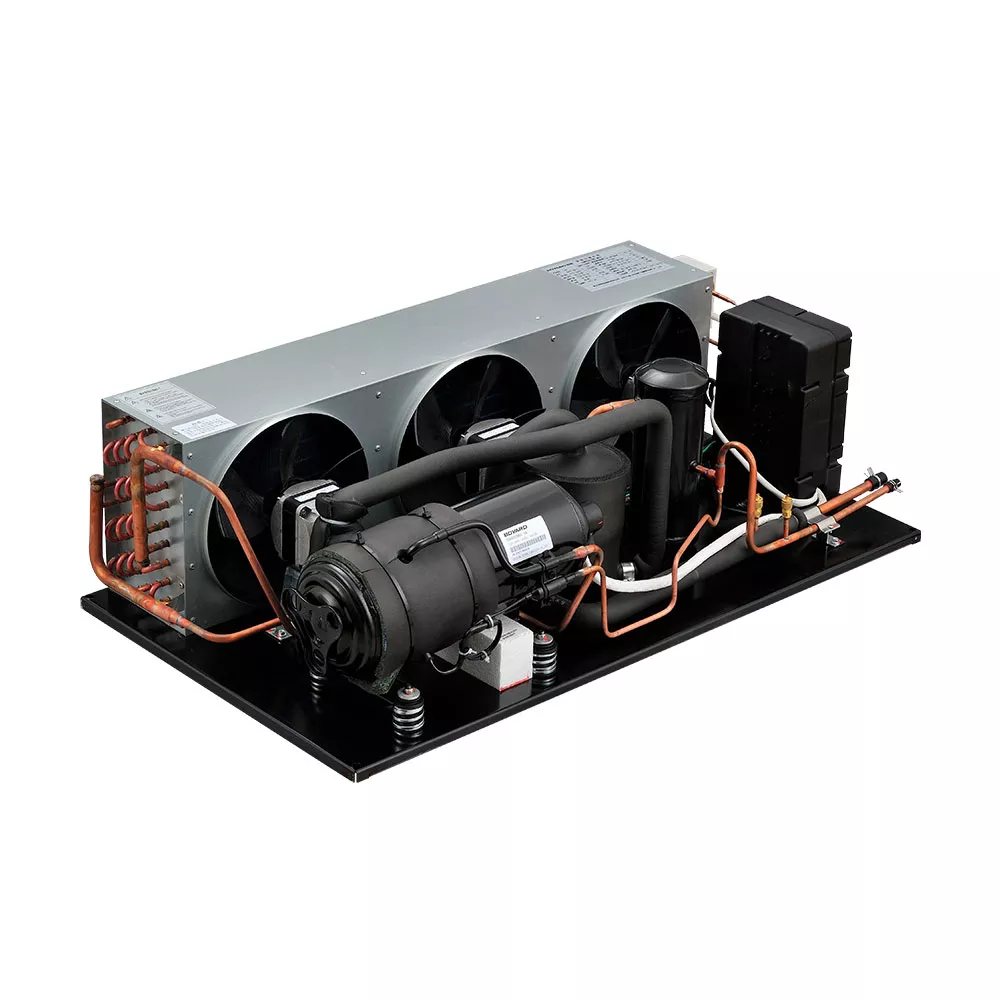

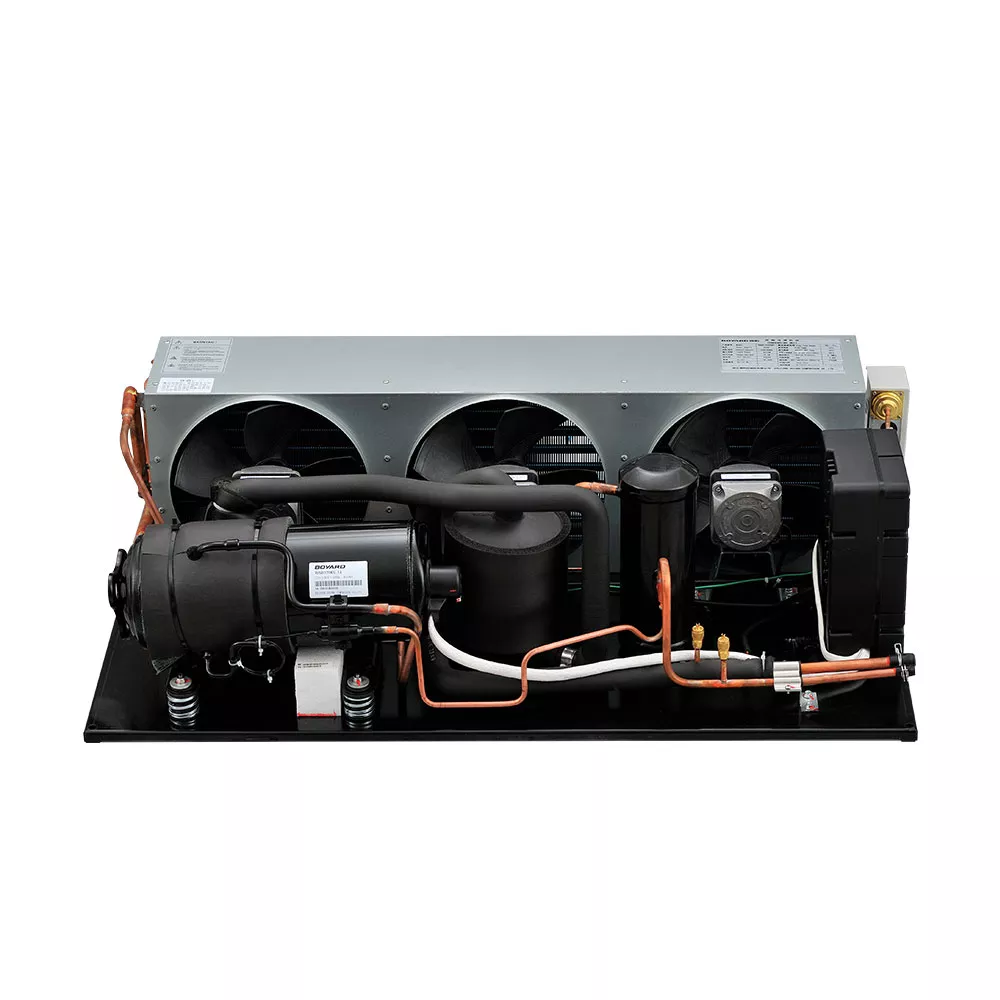

| Model | HQSD-203KBP | HQSD-329KBP20 | HQSD-456KBI23 | ||
| Nominal Input（W） | 1020 | 1770 | 2330 | ||
| Power Supply | 1PH 220～240V 50Hz | ||||
| Refrigerant | R404A | ||||
| Refrigerant Max.（Kg） | 2.0 | 3.0 | 3.5 | ||
| Start-Up Current (A) | 30 | 38 | 65 | ||
| Max Running Current (A) | 7 | 10.5 | 14 | ||
| Evap.Temp(℃) | -40～-5℃ | ||||
| Ambient Temp(℃) | 10～43℃ （The environmental temperature under 10℃, Increase the condensation temperature control） | ||||
| Compressor（Model） | KHSD203KS | THSD329KS | THSD456KS | ||
| Fam Motor | （mm）Diameter Quantity | φ230*2(16W*2) | φ230*3(16W*3) | φ230*4(16W*4) | |
| (m3/hr) Air Flow | 820*2 | 820*3 | 820*4 | ||
| (mm) Pipe | Gas Inlet Diam | φ12.7(1/2″) | |||
| Liquid Outlet | φ9.53(3/8″) | ||||
| (mm) Out Dimension | (mm) Length | 790 | 1145 | 1350 | |
| (mm) Width | 520 | 520 | 540 | ||
| (mm) Height | 263 | ||||
| （Kg）Weight | 35.5 | 53.3 | 60 | ||
| （W） Capacity | (℃) | Ambient Temp:32℃ | |||
| -40 | 580 | 920 | 1100 | ||
| -35 | 710 | 1145 | 1415 | ||
| -30 | 890 | 1390 | 1790 | ||
| -25 | 1125 | 1830 | 2160 | ||
| -20 | 1390 | 2065 | 2695 | ||
| -15 | 1660 | 2440 | 3090 | ||
| -10 | 1950 | 2900 | 3935 | ||
| -5 | 2280 | 3250 | 4730 | ||
| Wiring Capacity | Leak Protector | (A) Rated Current | 20 | 20 | 20 |
| (mA) Leak Current | 30 | 30 | 30 | ||
| (mm2) Diameter | L≤10m | 2.5 | 4.0 | 4.0 | |
| 10＜L≤20m | 2.5 | 6.0 | 6.0 | ||
| 20＜L≤30m | 2.5 | 6.0 | 6.0 | ||
| (GB/T 21363-2008)TEST CONDITION: | |||||
| TEST CATION | AMBIENT TEMP. | EVAP. TEMP. | TESTING POWER SUPPLY | ||
| ① | Standard test conditions | 32.2℃ | -23℃ | 220V～50HZ | |
| ② | OVERLOAD RUNNING | 43℃ | -7℃ | 220V～50HZ | |
