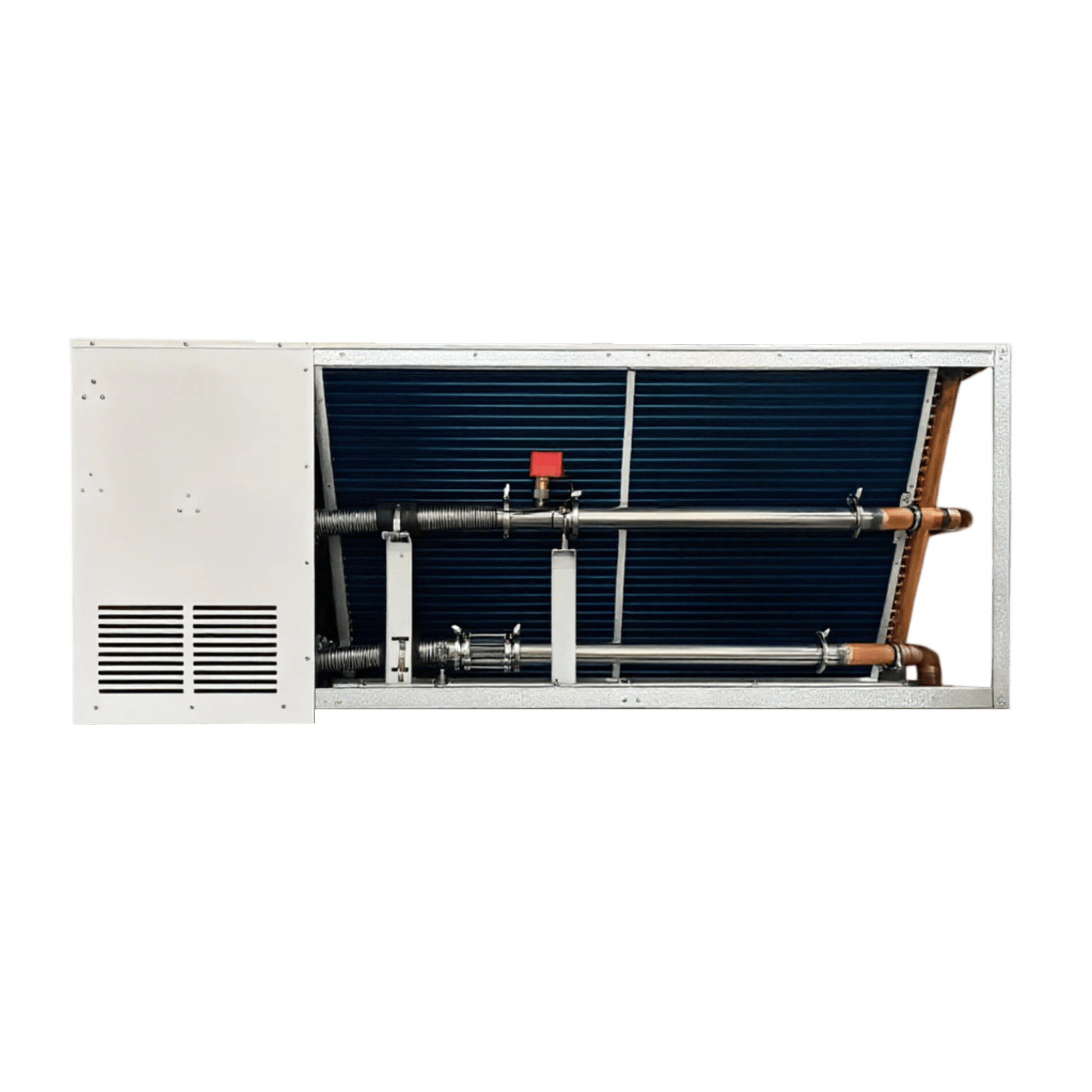

| DRY070K | ||||||
| Power Supply | Horsepower | Heat Transfer Medium | Ambient Temp.(℃) | Water Discharge (m³/h) | Heat Excharge Amount (KW) | |
| Ambient Temp.:31.5℃ Inlet Water Temp.:37℃ Outlet Water Temp.:32℃ | ||||||
| 1HP 220V 50Hz （1HP 220V 60Hz Optional） | 7.0 HP | Pure Water or Glycol Mixture | -20～43 (Below 5℃ use ethylene glycol mixture) | 3.5 | 19 | |
| Test Condition | Evaporating Temp. | Condensing Temp. | Suction Temp. | Liquid Temp. |
| HBP | 7.2℃ | 54.5℃ | 18.3℃ | 46.1℃ |
| MBP | -6.7℃ | 54.5℃ | 18.3℃ | 32.2℃ |
| LBP | -23.3℃ | 54.5℃ | 18.3℃ | 32.2℃ |
| 4-20 HP Dry Cooler | |||||||||
| Model | DRY040K | DRY070K | DRY100M | DRY120M | DRY150M | DRY200M | |||
| Power Supply | 1HP 220V 50Hz （1HP 220V 60Hz Optional） | 3HP 380V 50Hz （3HP 380V 60Hz Optional） | |||||||
| Heat Transfer Medium | Pure Water or Glycol mixture | ||||||||
| Ambient Temp (℃) | -20～43 (Below 5℃ use ethylene glycol mixture) | ||||||||
| Water Discharge (m3/h) | 2.5 | 3.5 | 5.0 | 6.0 | 8.0 | 10.0 | |||
| Heat Excharge Amount (KW) | Ambient Temp.:31.5℃ Inlet Water Temp.:37℃ Outlet Water Temp.:32℃ | ||||||||
| 11 | 19 | 28 | 32 | 40 | 56 | ||||
| Dimension (mm) | Length (mm) | 1250 | 1550 | 2150 | 2200 | ||||
| Width (mm) | 650 | 750 | 1150 | 1500 | |||||
| Height (mm) | 1200 | 1580 | 1950 | 1130 | 1200 | ||||
| Installation Dimension (mm) | Length*Width (mm) | 580*610 | 680*610 | 1500*1120 | 1500*1470 | ||||
| Packaging Dimension (mm) | Length*Width*Height (mm) | 1350*720*1380 | 1350*820*1760 | 1650*820*1760 | 1650*820*2130 | 2250*1250*1200 | 2300*1600*1380 | ||
Professional manufacturer of rotary compressor for more than 20 years CCC, CE, RoHS &REACH, ISO9001, IATF16949 certificates
We have one year warranty for manufacturer Dual Cylinder series provides better performance Customization service to fulfill the market needs
Electric compressors represent the future of automotive air conditioning. The Boyard family of compressors is available to handle input voltages of 12 to 72 VDC to meet today’s electric vehicle requirements for both battery and comfort cooling.
Boyard dc compressor is driven by 12V or 24V or 48V or 72V battery. The AC still runs smoothly when the truck stops the engine.
DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72V compressor is widely used in air conditioning of electric car; DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.
When the voltage of battery is lower than the limit, the A/C system will be shut off automatically. After the battery reach recover voltage, the A/C system will re-start automatically.
We have one year warranty for manufacturers.
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
